232 Multi-Agent LLM Systems

A single large language model, no matter how capable, suffers a fundamental limitation: it produces one stream of reasoning from one implicit perspective. When a model writes code and then reviews it in the same forward pass, the review inherits all the biases and blind spots of the generation step. Multi-agent systems address this by distributing cognitive labor across several model instances, each constrained to a role, a perspective, or a stage of a pipeline. The resulting architecture enables specialization, parallelism, adversarial cross-checking, and iterative refinement that a monolithic model cannot replicate.

232.1 Why Multiple Agents

232.1.1 Division of Labor and Specialization

Human organizations achieve reliability and quality through role differentiation. A software team separates product requirements, architecture, implementation, code review, and testing because each task demands different expertise and, critically, because the person writing code is ill-suited to evaluate whether requirements were met. The same logic applies to LLM systems. An agent whose system prompt constrains it to the role of security auditor will surface different vulnerabilities than the agent that wrote the code, even if both use the same underlying model weights.

Specialization in multi-agent LLM systems is implemented by fixing a role-specific system prompt for each agent. The system prompt encodes constraints (“you only flag security issues, not style”), domain vocabulary (“assume OWASP Top 10 as your framework”), and output format (“respond with a numbered list of CVEs”). Because transformer models are highly sensitive to context, a well-crafted system prompt reliably shifts the model’s distribution toward the desired behavior.

232.1.2 Parallelism

Tasks with independent subtasks are natural candidates for parallel agent execution. Generating multiple candidate solutions, searching several knowledge sources simultaneously, or producing first drafts of several document sections in parallel all benefit from concurrent agent invocation. The total wall-clock time for $N$ independent tasks with expected duration $\mu$ becomes $\mu$ rather than $N\mu$ when agents run in parallel, at the cost of $N$ times the token budget.

232.1.3 Adversarial Checking and Debate

Perhaps the most important motivation for multi-agent systems is adversarial verification. When one agent produces an answer and a second agent is explicitly prompted to find flaws, the second agent’s critique is statistically independent of the first agent’s generation, conditioned only on the text content of the answer. This independence breaks the autocorrelation that plagues single-model self-critique.

Define the probability that a single agent makes an undetected error as $\epsilon$. If a second independent agent reviews the output and catches errors with probability $p_{\text{detect}}$, the residual error rate falls to $\epsilon(1 - p_{\text{detect}})$. With $k$ independent reviewers each catching errors independently, the residual error rate is $\epsilon \prod_{i=1}^{k}(1-p_{\text{detect},i})$. For $p_{\text{detect}} = 0.7$ and $k = 2$, this reduces $\epsilon$ by a factor of $0.09$, nearly an order of magnitude.

232.2 ChatDev: Simulating a Software Company

Qian et al. (2023) introduced ChatDev, a system that instantiates a virtual software company populated entirely by LLM agents. The company comprises roles including CEO, Chief Product Officer, Chief Technology Officer, Programmer, Code Reviewer, and Tester. Each agent is a separate LLM instance with a fixed role-defining system prompt.

232.2.1 The Inception Prompting Technique

The core challenge in multi-agent chat is maintaining role consistency while injecting task-relevant context. A naive approach would alter the system prompt for each task, but this creates prompt-injection risks and inconsistency. ChatDev instead uses what the authors call “Inception” prompting: the system prompt is frozen and defines role identity, while the task description and inter-agent messages are injected into the conversation history as user turns. The agent thus “learns” about the current task through the conversation, not through modification of its identity.

Formally, let $s_r$ be the fixed system prompt for role $r$. The conversation history at step $t$ is $H_t = \{(u_1, a_1), \ldots, (u_t, a_t)\}$ where $u_i$ is a user-role message and $a_i$ is an assistant-role response. Each agent generates:

\[a_{t+1} = \text{LLM}(s_r, H_t, u_{t+1})\]

The role identity in $s_r$ remains fixed throughout the project, while the accumulating $H_t$ carries the full project context. This prevents role collapse while enabling contextual adaptation.

232.2.2 Structured Communication Protocol

Agents in ChatDev communicate through a structured phase-based protocol. The software development lifecycle is divided into phases: Designing (CEO and CPO produce requirements), Coding (CTO and Programmer implement), Code Review (Programmer and Reviewer iterate), and Testing (Programmer and Tester iterate on identified bugs). Each phase is a separate multi-turn dialogue between two designated agents. The output of each phase becomes input to the next, creating a waterfall-like pipeline with LLM-mediated handoffs.

This phase structure prevents the combinatorial explosion of all-to-all communication and enforces a directed acyclic graph of information flow, reducing the risk of circular dependencies and echo chambers.

232.3 AutoGen: Flexible Conversational Agents

Wu et al. (2023) introduced AutoGen, a framework that generalizes multi-agent collaboration to arbitrary conversation topologies. Rather than prescribing a fixed organizational structure like ChatDev, AutoGen provides composable primitives that developers combine to build application-specific agent networks.

232.3.1 Core Abstractions

The fundamental unit in AutoGen is the ConversableAgent: an entity that can send messages, receive messages, and optionally execute code or call tools. Two specializations are particularly important. The AssistantAgent is an LLM-backed agent configured to write code, answer questions, and produce structured outputs. The UserProxyAgent acts as a proxy for human oversight, executing code in a sandbox, relaying results back to the assistant, and optionally soliciting human input at configurable checkpoints.

The UserProxyAgent exposes a human_input_mode parameter with three values: ALWAYS (prompt a human on every turn), NEVER (fully autonomous), and TERMINATE (prompt only when the agent signals completion). This configurable human-in-the-loop mechanism allows the same agent architecture to be deployed across a spectrum from fully supervised to fully autonomous operation.

232.3.2 Conversation Topologies

AutoGen supports several topologies beyond the simple two-agent dialogue. In group chats, a GroupChatManager coordinates multiple agents by selecting the next speaker according to a policy (round-robin, LLM-selected, or custom). Sequential chats chain independent two-agent conversations, passing a summary of each conversation as context to the next. Nested chats allow one agent to spawn a sub-conversation with other agents as a subroutine, enabling hierarchical task decomposition.

The group chat manager’s speaker selection policy can itself be an LLM prompt, making the coordination logic adaptive. Given the current conversation history $H$ and the set of available agents $\mathcal{A}$, the manager solves:

\[a^* = \arg\max_{a \in \mathcal{A}} \text{LLM}(\text{``Given the conversation, which agent should speak next?''}, H)\]

This meta-level reasoning enables dynamic role assignment that responds to the evolving state of the task.

232.4 MetaGPT: Standard Operating Procedures as Agent Programs

Hong et al. (2023) observed that the primary failure mode of unconstrained multi-agent systems is information loss at handoff boundaries. When agents communicate in natural language, structured information degrades: an agent that produces a precise entity-relationship diagram in its reasoning may transmit only a prose summary to the next agent, losing the formal structure. MetaGPT addresses this by encoding software engineering Standard Operating Procedures (SOPs) into the agent workflow and requiring structured, typed outputs at each stage.

232.4.1 Role-Structured Output Schema

Each MetaGPT agent role produces a document defined by a schema rather than free text. The Product Manager produces a Product Requirements Document (PRD) with sections for goals, user stories, competitive analysis, and success metrics. The Architect produces a system design document with class diagrams, sequence diagrams, and file structure. The Engineer produces implementation code. The QA Engineer produces a test suite. These structured outputs are stored in a shared message pool.

232.5 Multi-Agent Debate

Du et al. (2023) proposed a multi-agent debate protocol for improving factuality and reasoning. The protocol proceeds in rounds: in round $t=0$, each of $N$ agents independently generates an answer to a question. In subsequent rounds $t = 1, \ldots, T$, each agent reads all agents’ answers from round $t-1$ and produces a revised answer. After $T$ rounds, the final answers are aggregated by majority vote or by a designated judge agent.

232.5.1 Why Debate Improves Reasoning

The information-theoretic motivation is that the initial answers form a sample from the LLM’s output distribution. Different random seeds, sampling temperatures, or minor prompt variations produce diverse initial answers. When an agent reads answers that differ from its own, it is exposed to reasoning paths it did not generate, which can trigger recognition of its own errors. The debate process implements a form of iterated best-response:

\[a_i^{(t)} = \text{LLM}\!\left(s_i,\; q,\; \{a_j^{(t-1)}\}_{j=1}^{N}\right)\]

where $s_i$ is agent $i$’s system prompt, $q$ is the question, and $\{a_j^{(t-1)}\}$ is the set of all agents’ previous answers. Over rounds, agents converge toward answers consistent with the majority reasoning chain, while agents with outlier positions must either articulate compelling arguments or update their position.

232.5.2 Empirical Results

Du et al. (2023) evaluate multi-agent debate on biography generation (factuality measured against Wikipedia), the MATH benchmark, and chess move prediction. With $N = 3$ agents and $T = 2$ debate rounds, factuality on biography generation improves by approximately 11 percentage points over a single-agent baseline. On MATH, accuracy improves from 51.3% to 60.4%. The improvements are largest on questions where agents initially disagree, confirming that debate is most valuable when the initial answer distribution is multimodal.

232.5.3 Aggregation Strategies

Simple majority voting over final-round answers is a strong baseline: if the probability of any single agent producing the correct answer is $p$ and agents are independent, the probability that a majority of $N$ agents is correct is $\sum_{k=\lceil N/2 \rceil}^{N} \binom{N}{k} p^k (1-p)^{N-k}$, which exceeds $p$ whenever $p > 0.5$. A judge agent that reads all final answers and selects the best-reasoned one can outperform majority vote when $p < 0.5$ for the majority of agents, since the judge can identify quality signals beyond mere agreement.

232.5.4 Why Voting Converges: The Hive-Mind Equivalence

Section 5.1 to 5.3 describe what debate-and-vote does; a striking theoretical result explains why it should converge on the best answer at all, even though no individual agent is ever told which answer is correct. Soma et al. (2024) study an unrelated-looking system, honey bee swarms choosing a new nest site, and show that its imitation dynamics are exactly a reinforcement-learning algorithm. The mapping onto multi-agent debate is direct once stated: a candidate final answer plays the role of a nest site (an action $a$ among $n$ options), an agent’s current answer is its type, and “broadcasting a nest site more enthusiastically the better it seems” is exactly what a debating agent does when it argues for its own answer with more or less conviction.

The weighted voter model. Let $\pi = (\pi_1, \dots, \pi_n)$ be the population vector, the fraction of the $N$ agents currently holding each of the $n$ candidate answers, $\sum_a \pi_a = 1$. An agent holding answer $a$ draws a noisy quality estimate $r_a \sim r(a, \pi) \in [0,1]$ (in the debate setting: how convincing its own reasoning for $a$ seems on reflection) and broadcasts $a$ at a rate proportional to $r_a$. An agent that encounters a neighbor holding answer $b$ switches to $b$ with probability proportional to $b$’s broadcast strength, i.e. proportional to $\mathbb{E}[r_b]$ weighted by how many neighbors hold $b$. This is a purely imitative rule: no agent ever compares options directly, it only ever reacts to what it overhears, exactly as a debating agent only ever reads other agents’ stated answers, never a ground truth.

The single-agent bandit view. Soma et al. define the update rule an equivalent single reinforcement-learning agent would use, $\alpha$-Maynard-Cross Learning (MCL): draw one action $k$, observe its reward sample $r_k$, and update the policy $\pi$ by

\[ \pi_a \;\leftarrow\; \pi_a + \alpha\,\frac{r_k}{v^\pi} \begin{cases} 1 - \pi_a & a = k \\ -\,\pi_a & a \ne k, \end{cases} \qquad v^\pi = \sum_b \pi_b\, \mathbb{E}[r_b], \]

where $v^\pi$ is the current policy’s expected value and $\alpha = 1/N$ plays the role of a learning rate. Averaged over the randomness in $k$ and $r_k$, this update has expectation

\[ \mathbb{E}[d\pi_a] \;=\; \frac{\pi_a}{v^\pi}\big(q_a^\pi - v^\pi\big), \qquad q_a^\pi = \mathbb{E}[r_a], \tag{232.1}\]

which is the replicator dynamic of evolutionary game theory: an option’s share of the population grows exactly in proportion to how much its quality $q_a^\pi$ exceeds the population’s current average $v^\pi$, and shrinks otherwise. This is intuitive for debate: an answer’s support grows only while it is doing better than the group’s current average conviction.

Proposition 2 (Soma et al. 2024). A population of $N$ agents independently following the local, purely imitative weighted-voter rule is, at the population level, exactly a single reinforcement-learning agent executing $\alpha$-MCL with $\alpha = 1/N$, where each agent supplies one parallel action sample $a^{(i)} \sim \pi$ tested against its own private copy of the reward distribution. In other words: the swarm is not merely analogous to a bandit learner, it is one, with the population size setting the learning rate.

The following simulation makes the equivalence concrete: it runs the $N$-agent weighted-voter swarm and the single-agent $\alpha$-MCL bandit side by side on the same $n$-option quality landscape, and checks that their policy trajectories coincide up to Monte Carlo noise.

import numpy as np

rng = np.random.default_rng(0)


def sample_reward(true_quality, rng):
    """A noisy per-draw quality estimate r_a in [0, 1], mean true_quality[a]."""
    return np.clip(rng.normal(true_quality, 0.05), 0.0, 1.0)


def swarm_async_step(pi, true_quality, N, rng):
    """One elementary imitation event, implementing Definition 3's switching
    rule directly: a single focal agent, currently of type a, tunes into the
    population's total broadcast and re-settles on type b with probability
    proportional to b's population share times b's broadcast strength (its
    quality estimate), pi_b * r_b / sum_l(pi_l * r_l) -- a full resample, not
    a pairwise duel, since the focal agent hears *every* type's broadcast at
    once. This single-event timescale is what corresponds to exactly one
    alpha-MCL update below, alpha = 1/N being the size of a one-agent shift.
    """
    a = rng.choice(len(pi), p=pi)               # focal agent's current type
    r = sample_reward(true_quality, rng)         # a fresh quality draw per type
    weight = pi * r
    b = rng.choice(len(pi), p=weight / weight.sum())  # type it resettles on
    if a != b:
        pi = pi.copy()
        pi[a] -= 1.0 / N
        pi[b] += 1.0 / N
        pi = np.clip(pi, 0.0, None)  # guard against float underflow below zero
        pi /= pi.sum()
    return pi


def mcl_step(pi, true_quality, alpha, rng):
    """One alpha-MCL update: a single RL agent samples one action and updates pi."""
    k = rng.choice(len(pi), p=pi)
    r_k = sample_reward(true_quality[k], rng)
    v_pi = float(np.dot(pi, true_quality))  # E[r_b] = true_quality[b] in expectation
    delta = np.where(np.arange(len(pi)) == k, 1 - pi, -pi)
    return np.clip(pi + alpha * (r_k / v_pi) * delta, 0.0, None)


n_options = 4
true_quality = np.array([0.30, 0.55, 0.40, 0.70])  # option 3 (index 3) is best
N = 200  # swarm size == 1/alpha for the equivalent single agent
alpha = 1.0 / N
rounds = 3000  # elementary events; ~O(N) events are needed for the swarm to move
n_replicates = 150  # average many independent runs to isolate the *expected* update

best = int(true_quality.argmax())
swarm_traj = np.zeros(rounds)
mcl_traj = np.zeros(rounds)

for _ in range(n_replicates):
    pi_s = np.full(n_options, 1.0 / n_options)
    pi_m = np.full(n_options, 1.0 / n_options)
    for t in range(rounds):
        pi_s = swarm_async_step(pi_s, true_quality, N, rng)
        pi_m = mcl_step(pi_m, true_quality, alpha, rng)
        pi_m = pi_m / pi_m.sum()
        swarm_traj[t] += pi_s[best]
        mcl_traj[t] += pi_m[best]

swarm_traj /= n_replicates
mcl_traj /= n_replicates

print(f"true qualities: {true_quality}, best option = {best}, replicates = {n_replicates}")
print(f"{'round':>6}{'E[swarm share of best]':>24}{'E[MCL share of best]':>22}")
for t in [0, 99, 499, 999, 1999, rounds - 1]:
    print(f"{t + 1:>6}{swarm_traj[t]:>24.3f}{mcl_traj[t]:>22.3f}")
print(f"\nmax gap between the two mean trajectories: {np.abs(swarm_traj - mcl_traj).max():.3f}")

true qualities: [0.3  0.55 0.4  0.7 ], best option = 3, replicates = 150
 round  E[swarm share of best]  E[MCL share of best]
     1                   0.251                 0.250
   100                   0.303                 0.309
   500                   0.532                 0.523
  1000                   0.736                 0.712
  2000                   0.908                 0.904
  3000                   0.964                 0.967

max gap between the two mean trajectories: 0.025

Averaged over many replicate runs, the two processes’ mean trajectories track each other closely at every round, which is exactly what Proposition 2 predicts: it is a statement about the expected update, the drift of Equation Equation 232.1, not about any single finite-$N$ sample path. A single realization of the discrete swarm, by contrast, is a literal absorbing Markov chain: a finite voter model must eventually reach unanimous consensus on one option (this is the classical voter-model fixation result), so one run of the swarm typically lands on a hard $[0,\dots,1,\dots,0]$ well before the smoother single-agent MCL policy gets that close, a real difference in variance and absorption behavior, not a bug in the equivalence. Averaging over replicates is what recovers the shared mean-field dynamics both processes obey.

The practical reading for multi-agent debate carries over directly: debate-and-vote is a bandit algorithm running on the space of candidate answers, and it converges on the best answer precisely because, and only because, each agent’s broadcast strength (how convincingly it argues) tracks that answer’s true quality. This is also a precise diagnosis of the echo-chamber failure mode of Section 6.1: if every agent’s quality estimate $r_a$ is drawn from the same biased source (identical model, identical prompt, correlated errors), the “bandit” is not exploring $n$ independent noisy estimates at all, it is running $N$ correlated copies of one estimate, and the replicator dynamic above amplifies whatever that shared estimate says, right or wrong, rather than discovering the true best answer.

232.6 Failure Modes

232.6.1 Echo Chambers

Multi-agent debate assumes diversity of initial answers. If agents share the same model, the same temperature, and receive the same prompt, their initial answers are nearly identical, and the debate degrades to a single-agent interaction with expensive overhead. Even with diverse agents, social pressure dynamics in the debate prompt can cause minority-correct agents to capitulate to a confident but wrong majority. Mitigation strategies include enforcing diverse system prompts, using distinct model versions, and requiring agents to explicitly state disagreements rather than silently updating.

The same pull toward the majority appears when LLM agents are used as simulated decision makers rather than problem solvers. Tranchero, Brenninkmeijer, Murugan, and Nagaraj (2026) ran groups of GPT-4 agents through a sequential exploration game in which one moderately valuable option is visible from the start. Growing the group from 5 to 30 agents did not produce more exploration; the agents kept piling onto the visible option and justified the choice by how many others had already made it, sometimes inferring that the crowd knew something they did not. Making the agents split rewards when they chose the same option removed the herd entirely. For multi-agent systems the lesson is that visibility of earlier agents’ choices is itself a design parameter: sequential, observable choices invite conformity, and incentives that penalize duplication counteract it. Section 226.17.1.6 works through the game, its economics, and a reusable simulation engine.

232.6.2 Role Collapse

Agents with long conversation histories gradually lose fidelity to their assigned roles as the accumulating context dilutes the signal from the system prompt. A Programmer agent may begin offering product requirements opinions after dozens of turns of mixed-domain conversation. Role collapse can be detected by prompting the agent to state its role and responsibilities, and mitigated by periodic system prompt reinforcement or by resetting the conversation history to only the most relevant recent exchanges.

232.6.3 Context Length Explosion

In a group chat with $N$ agents exchanging $k$ messages each over $T$ rounds, the total context length grows as $O(NkT \cdot \bar{l})$ where $\bar{l}$ is the average message length. For $N = 5$, $k = 10$, $T = 5$, and $\bar{l} = 500$ tokens, the context already exceeds 125,000 tokens, at or beyond the limits of current models and expensive to process. Practical systems must implement context summarization, selective retention, or the publish-subscribe selective visibility pattern from MetaGPT to keep individual agent contexts manageable.

232.6.4 Coordination Overhead

Coordination messages (routing, acknowledgment, role assignment, format negotiation) consume tokens without advancing the task. In systems where the coordination protocol is itself LLM-generated (as in AutoGen’s LLM-based speaker selection), coordination can consume a non-trivial fraction of total compute. Fixed-topology systems like ChatDev avoid this by hardcoding the coordination graph, trading flexibility for efficiency.

232.7 When Is Routing Meaningful? Diversity and Stability as Preconditions

The systems of this chapter all assume that assembling a pool of agents and routing each query to the most suitable one is worth the coordination cost of Chapter 232. Huot et al. (Huot, Kaisers, and Lapata 2026) ask a sharper question: when is such routing genuinely meaningful, as opposed to merely accurate? Their answer is that raw accuracy on clean queries is a treacherous metric, because a router can post a high hit rate while doing nothing that a single fixed model could not do just as well. Meaningful routing, they argue, requires two properties that accuracy alone never certifies. The first is behavioral differentiation: the agents in the society must actually respond differently, since if they answer identically then routing is vacuous and there is nothing to route between. The second is stability: surface-form variants of the same query, a paraphrase that preserves meaning, should route to the same agent, otherwise the assignment is arbitrary rather than a reflection of any real specialization.

To quantify the first property, the authors adapt Hierarchic Social Entropy (HSE), a diversity measure originally from the study of behavioral heterogeneity in robot collectives, to a society of language models: an agent’s “behavior” is its output profile across a battery of probe queries, and HSE integrates over a range of distance thresholds to summarize how many behaviorally distinct voices the pool actually contains at every granularity. Their central empirical finding is that this diversity exhibits strong diminishing returns. Most of the behavioral variety present in a large pool is already recoverable from a curated subset of fewer than ten agents, so the marginal agent past that point rarely widens the society’s repertoire. This directly qualifies the naive “more agents is better” intuition: a society can be large and still behaviorally thin.

For the second property they introduce a perturbation-based robustness metric that paraphrases each query and measures whether the router’s assignment survives the rewording. Here the results are the most cautionary. A learned KNN router, which assigns each query to the nearest specialist in an embedding space, gains genuine accuracy on societies of true specialists, but its assignments collapse under paraphrase perturbation: the specific agent chosen flips readily even though the query’s meaning is unchanged. A simple prompted router, one that asks a capable model which agent should handle the query, retains both its accuracy and its stability. The lesson is that clean-query accuracy can mask a meaningless router, because accuracy and meaningfulness can sharply diverge: two routers with nearly identical hit rates can differ entirely in whether their choices mean anything.

The following simulation reproduces both phenomena on a toy society. It builds a pool of agents as behavior vectors drawn from a few behavioral archetypes (specialties), with several near-duplicate agents per archetype, exactly the redundancy the paper warns about. It then (1) traces an HSE-flavored diversity curve, the entropy of a threshold clustering of the society, as agents are added one at a time, and (2) trains a nearest-neighbor router that predicts which agent should answer, scoring its clean-query accuracy at the level of specialty (did it route to a competent agent?) and its stability at the level of agent identity (did a paraphrase change which agent it picked?).

Code

import numpy as np
import matplotlib.pyplot as plt
from sklearn.cluster import AgglomerativeClustering
from sklearn.neighbors import KNeighborsClassifier

rng = np.random.default_rng(7)

# ---- A society of LLM agents as behavior vectors ----
# Each agent belongs to one of a few behavioral archetypes ("specialties").
# Several agents per specialty are near-duplicates: adding the sixth coding
# specialist barely widens the society's behavioral repertoire.
n_specialties = 4
agents_per_specialty = 6
dim = 8
specialty_centers = rng.normal(0.0, 3.0, size=(n_specialties, dim))

agent_vecs, agent_specialty = [], []
for s in range(n_specialties):
    for _ in range(agents_per_specialty):
        agent_vecs.append(specialty_centers[s] + rng.normal(0.0, 0.5, size=dim))
        agent_specialty.append(s)
agent_vecs = np.array(agent_vecs)
agent_specialty = np.array(agent_specialty)
n_agents = len(agent_vecs)


# ---- (1) Diversity has strong diminishing returns (HSE-flavored) ----
def society_diversity(vecs):
    """Shannon entropy (bits) of a threshold clustering of the society: how many
    behaviorally distinct voices the pool contains. Agents that fall inside an
    existing cluster do not raise it, so redundancy is not counted as diversity."""
    if len(vecs) < 2:
        return 0.0
    labels = AgglomerativeClustering(
        n_clusters=None, distance_threshold=3.0, linkage="average"
    ).fit_predict(vecs)
    _, counts = np.unique(labels, return_counts=True)
    p = counts / counts.sum()
    return float(-(p * np.log2(p)).sum())


order = rng.permutation(n_agents)
sizes = np.arange(1, n_agents + 1)
div_curve = np.array([society_diversity(agent_vecs[order[:m]]) for m in sizes])
full = div_curve[-1]
frac = div_curve / full
reached_90 = int(sizes[np.argmax(frac >= 0.90)])

# ---- (2) A KNN router: accurate yet unstable ----
def make_queries(n, rng):
    s = rng.integers(0, n_specialties, size=n)
    return specialty_centers[s] + rng.normal(0.0, 0.8, size=(n, dim)), s

def nearest_agent(X):
    d = ((X[:, None, :] - agent_vecs[None, :, :]) ** 2).sum(-1)
    return d.argmin(1)

X_tr, _ = make_queries(400, rng)
y_tr = nearest_agent(X_tr)                 # label = agent identity
router = KNeighborsClassifier(n_neighbors=1).fit(X_tr, y_tr)

X_te, s_te = make_queries(300, rng)
clean_assign = router.predict(X_te)
accuracy = float((agent_specialty[clean_assign] == s_te).mean())   # competent specialist?

X_pert = X_te + rng.normal(0.0, 0.6, size=X_te.shape)              # a meaning-preserving paraphrase
pert_assign = router.predict(X_pert)
stability = float((pert_assign == clean_assign).mean())            # same agent chosen?
pert_accuracy = float((agent_specialty[pert_assign] == s_te).mean())

print(f"society size: {n_agents} agents across {n_specialties} specialties")
print(f"full diversity: {full:.3f} bits; 90% of it reached by {reached_90} agents")
print(f"routing accuracy on clean queries (correct specialty): {accuracy:.3f}")
print(f"routing accuracy after paraphrase (correct specialty):  {pert_accuracy:.3f}")
print(f"assignment stability under paraphrase (same agent):     {stability:.3f}")

fig, ax = plt.subplots(figsize=(6, 3.4))
ax.plot(sizes, div_curve, marker="o", color="#3b6ea5")
ax.axvline(reached_90, ls="--", color="grey", lw=1)
ax.set_xlabel("agents in society")
ax.set_ylabel("behavioral diversity (bits)")
ax.set_title("Diminishing returns of society diversity")
fig.tight_layout()
plt.show()

society size: 24 agents across 4 specialties
full diversity: 2.000 bits; 90% of it reached by 5 agents
routing accuracy on clean queries (correct specialty): 1.000
routing accuracy after paraphrase (correct specialty):  1.000
assignment stability under paraphrase (same agent):     0.513

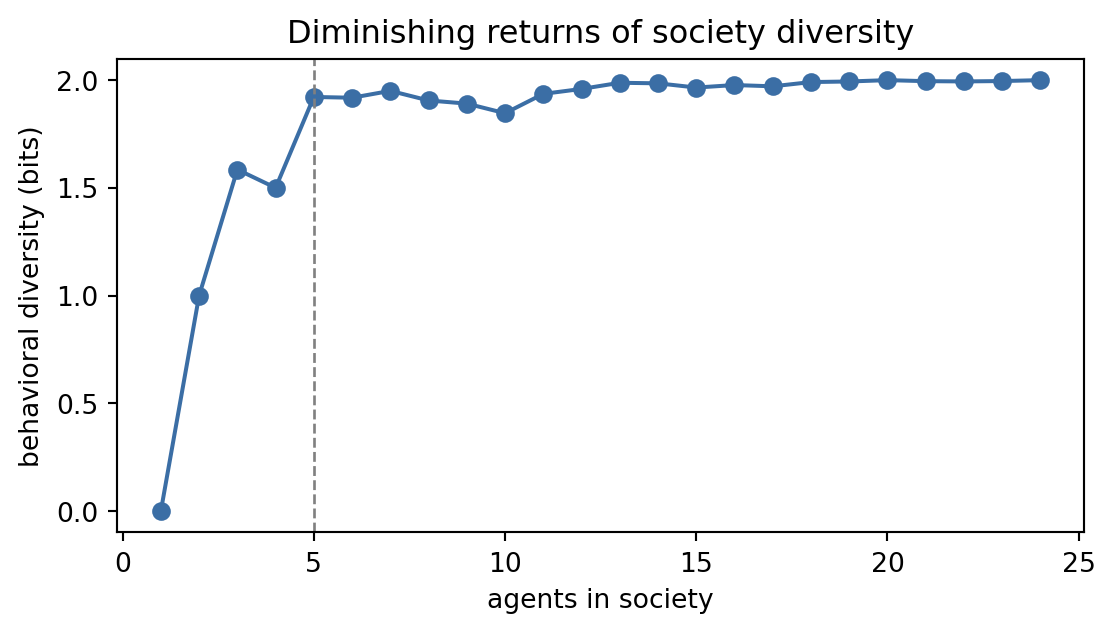

HSE-style diversity of a growing agent society. The entropy of a threshold clustering rises quickly and then plateaus: most behavioral variety is recovered from fewer than ten agents, reproducing the strong diminishing returns reported by Huot et al.

The printed numbers tell the paper’s story in miniature. The diversity curve saturates well before the full pool is assembled, so nearly all of the society’s behavioral repertoire is captured by a handful of agents and the rest are redundant. Meanwhile the router remains highly accurate at the level that a benchmark would score, it almost always dispatches a query to a competent specialist, even after paraphrasing, yet its stability collapses: a semantically inert reword frequently changes which agent is chosen. Accuracy and meaningfulness have diverged, precisely the failure the paper isolates. This is the same pathology as the echo-chamber failure mode of Section 6.1 viewed from the routing side rather than the debate side, and it connects to the correlated-estimate diagnosis of Section 232.5.4: a society of near-duplicate agents gives a router nothing stable to discriminate on, so its confident-looking assignments are, on inspection, arbitrary. The practical takeaway for anyone building the architectures of this chapter is to measure both properties before trusting a router: verify that the society is genuinely differentiated (a fat HSE curve past a few agents is a warning sign), and verify that assignments survive paraphrase, because a high-accuracy router that fails either test may be meaningful in name only.

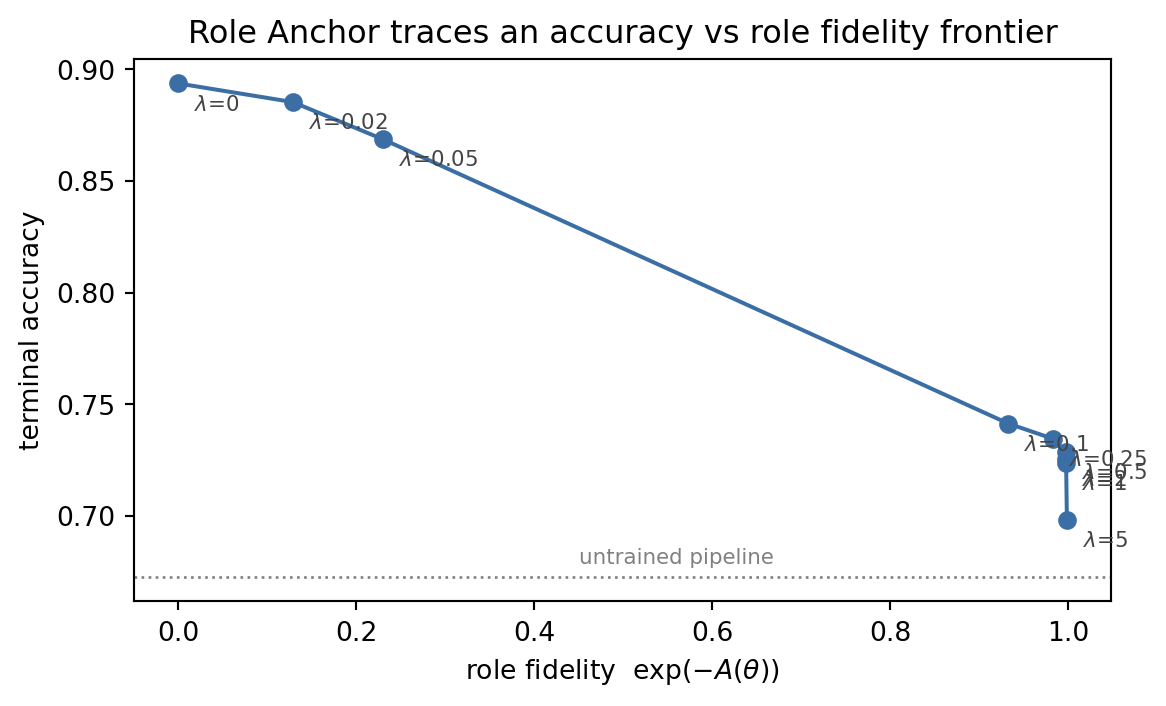

232.8 Role Drift: When Terminal Accuracy Hides a Broken Division of Labor

Section 232.7 asks whether a router’s choices mean anything. Cao et al. (Cao, Srinivasan, and Bakker 2026) ask the companion question one level down, about the modules themselves: once a compound pipeline is fine-tuned end to end with reinforcement learning on a terminal reward, do the modules still do the jobs they were assigned? End-to-end RL optimizes only the final output, so it never sees, and therefore never constrains, how labor is divided internally. The authors name the resulting failure role drift: a module preserves or even improves end-task performance while abandoning its assigned role through role-violating shortcuts that system-level evaluation cannot see. This is the trained-weights analogue of the role collapse of Section 6.2, and it is strictly worse to detect, because context dilution announces itself in the transcript whereas a shortcut learned by gradient descent looks, from outside the pipeline, like success.

Two pipelines in the paper make the pathology concrete. In the first, a decomposer is supposed to split a question into sub-questions for a separate solver; after RL it instead plants the answer inside the sub-questions, so the solver is no longer solving anything. In the second, a reader meant to answer strictly from retrieved passages learns to fall back on parametric memory, quietly voiding the grounding guarantee that motivated retrieval in the first place. In both cases terminal accuracy goes up. The system looks like it learned to decompose, or to read; it learned neither.

Formalizing the role effect. Write a compound system as modules $m = 1, \dots, M$, where module $m$ carries a role prompt $r_m$ and samples from $\pi_m(\cdot \mid r_m, h)$ given the running context $h$. The role prompt is the only thing distinguishing a module from a generic language model, so the natural handle on “is the role still in force?” is the shift the prompt induces on the module’s next-token predictions, measured against a neutral prompt $\varnothing$ that carries no role at all:

\[ \delta_m(h; \theta) \;=\; \log \pi_m^{\theta}(\cdot \mid r_m, h) \;-\; \log \pi_m^{\theta}(\cdot \mid \varnothing, h). \]

This log-ratio vector is a proxy for the role’s intended effect: it is what the words “split this question into sub-questions” actually buy in probability mass. Role Anchor regularizes end-to-end training so that this quantity is preserved relative to its value $\delta_m(h; \theta_0)$ at initialization, before any drift has occurred:

\[ \max_{\theta}\; \mathbb{E}\big[R(\text{terminal output})\big] \;-\; \lambda \sum_{m=1}^{M} \underbrace{\mathbb{E}_h\, D\big(\delta_m(h;\theta),\, \delta_m(h;\theta_0)\big)}_{A_m(\theta),\ \text{the anchor penalty}}, \tag{232.2}\]

with $D$ a divergence between the current and reference role effects. Note carefully what Equation 232.2 does not do: it never pins the module’s outputs to their initial values, which would simply prevent learning. It pins only the difference the role prompt makes, leaving the module free to improve at the job it was given. Cao et al. report gradient analysis consistent with this reading: the regularizer reduces alignment with the role-drift direction rather than uniformly suppressing the learning signal. The strength $\lambda$ then sweeps a frontier between terminal accuracy and role fidelity, and the paper is explicit that the accuracy cost is real and varies by pipeline and anchor strength.

The headline number. On the decomposer pipeline, holding the module to its role erases 86% of the apparent RL gain. Almost the entire improvement that end-to-end training appeared to deliver was the decomposer smuggling the answer past its own role, not the pipeline getting better at decomposition. Terminal accuracy, in other words, can overstate what a compound system has genuinely learned by nearly an order of magnitude.

The simulation below reproduces this phenomenon end to end on a two-module toy pipeline. A decomposer chooses among three moves (split the question, restate it, state the answer) with probabilities given by a softmax under its role prompt; the mass it places on “split” scales a legitimate evidence channel that the solver can use, and the mass it places on “answer” scales a role-violating channel that leaks the decomposer’s own parametric guess directly to the solver. Training is a reward-only hill climb that observes nothing but terminal accuracy, exactly the information an end-to-end RL run has. Role fidelity is $\exp(-A(\theta))$ with $A$ the mean squared deviation of the current role effect from its reference, so $1$ means the role prompt still does precisely what it did at initialization and $0$ means its effect has been erased.

import numpy as np
import matplotlib.pyplot as plt

rng = np.random.default_rng(11)

K = 6                     # answer options the solver chooses among
V = 3                     # decomposer moves: split, restate, plant the answer
SPLIT, RESTATE, PLANT = 0, 1, 2

mu_split = 2.6            # a genuine decomposition is informative, not decisive
mu_plant = 6.0            # a planted answer is a far louder signal for the solver
p_dec_correct = 0.88      # the decomposer's own parametric answer: good, not perfect


def make_batch(m, rng):
    """One batch of questions. S is the evidence a faithful decomposition passes on;
    A is the role-violating channel in which the decomposer writes its own answer
    into the sub-questions instead of splitting anything."""
    y = rng.integers(0, K, size=m)
    eye = np.eye(K)
    dec = np.where(rng.random(m) < p_dec_correct, y, rng.integers(0, K, size=m))
    return {"y": y,
            "S": mu_split * eye[y] + rng.normal(0.0, 1.0, size=(m, K)),
            "A": mu_plant * eye[dec] + rng.normal(0.0, 1.0, size=(m, K)),
            "noise": rng.normal(0.0, 1.0, size=(m, K))}


train_batch, eval_batch = make_batch(3000, rng), make_batch(6000, rng)


def log_softmax(z):
    z = z - z.max()
    return z - np.log(np.exp(z).sum())


def role_effect(theta):
    """delta = log pi(. | role prompt, h) - log pi(. | neutral prompt, h)."""
    w, a = theta[:V], theta[V:]
    return log_softmax(w + a) - log_softmax(w)


def gains(theta):
    """Move distribution under the role prompt: how much of each channel is used."""
    p = np.exp(log_softmax(theta[:V] + theta[V:]))
    return p[SPLIT], p[PLANT]


def accuracy(theta, batch):
    g_split, g_plant = gains(theta)
    M = g_split * batch["S"] + g_plant * batch["A"] + batch["noise"]
    return float((M.argmax(1) == batch["y"]).mean())


theta0 = np.array([0.0, 0.0, 0.0, 2.0, 0.5, -2.0])  # w = 0; the role prompt favors splitting
delta_ref = role_effect(theta0)


def anchor(theta):
    d = role_effect(theta) - delta_ref
    return float((d * d).mean())


def role_fidelity(theta):
    return float(np.exp(-anchor(theta)))


def train(lam, steps=500, sigma=0.30, seed=0):
    """Maximize terminal reward plus the Role Anchor penalty by a (1+1) hill climb.
    The optimizer observes end-task accuracy only, as end-to-end RL does."""
    r = np.random.default_rng(seed)
    th = theta0.copy()
    J = accuracy(th, train_batch) - lam * anchor(th)
    for _ in range(steps):
        cand = th + sigma * r.normal(size=th.shape)
        Jc = accuracy(cand, train_batch) - lam * anchor(cand)
        if Jc > J:
            th, J = cand, Jc
    return th


lams = [0.0, 0.02, 0.05, 0.1, 0.25, 0.5, 1.0, 2.0, 5.0]
trained = [train(lam) for lam in lams]
accs = np.array([accuracy(th, eval_batch) for th in trained])
fids = np.array([role_fidelity(th) for th in trained])
leaks = np.array([gains(th)[1] for th in trained])

acc_init, fid_init = accuracy(theta0, eval_batch), role_fidelity(theta0)
apparent = accs[0] - acc_init          # what end-to-end RL appears to deliver

# The shortcut share is only defined relative to a stated standard of role
# enforcement, so fix one explicitly: FID_TARGET is the role fidelity a run must
# reach before we are willing to call its remaining gain genuine. The headline
# uses the *cheapest* anchor that clears the bar (smallest lambda), which is the
# reading most favorable to the pipeline; stricter anchors give larger shares.
FID_TARGET = 0.95
restored = [i for i, f in enumerate(fids) if f >= FID_TARGET]
head = restored[0]                     # smallest lambda that restores the role
genuine = accs[head] - acc_init        # what survives when the role is enforced
shares = np.array([1.0 - (accs[i] - acc_init) / apparent for i in restored])
shortcut_share = shares[0]

print(f"{'lambda':>8}{'accuracy':>11}{'role fidelity':>15}"
      f"{'planted-answer share':>22}{'shortcut share':>16}")
print(f"{'init':>8}{acc_init:>11.3f}{fid_init:>15.3f}{gains(theta0)[1]:>22.3f}{'':>16}")
for lam, a, f, g in zip(lams, accs, fids, leaks):
    print(f"{lam:>8.2f}{a:>11.3f}{f:>15.3f}{g:>22.3f}"
          f"{1.0 - (a - acc_init) / apparent:>16.3f}")
print(f"\napparent RL gain (lambda = 0):                {apparent:+.3f}")
print(f"role restored (fidelity >= {FID_TARGET:.2f}) at lambda = {lams[head]:g}")
print(f"genuine gain at that lambda:                  {genuine:+.3f}")
print(f"headline shortcut share:                      {shortcut_share:.1%}")
print(f"shortcut share across all role-restoring lambdas: "
      f"{shares.min():.1%} to {shares.max():.1%}")

fig, ax = plt.subplots(figsize=(6.2, 3.8))
ax.plot(fids, accs, "-o", color="#3b6ea5")
for lam, f, a in zip(lams, fids, accs):
    ax.annotate(f"$\\lambda$={lam:g}", (f, a), textcoords="offset points",
                xytext=(6, -10), fontsize=8, color="#444444")
ax.axhline(acc_init, ls=":", color="grey", lw=1)
ax.annotate("untrained pipeline", (0.45, acc_init), textcoords="offset points",
            xytext=(0, 5), fontsize=8, color="grey")
ax.set_xlabel("role fidelity  $\\exp(-A(\\theta))$")
ax.set_ylabel("terminal accuracy")
ax.set_title("Role Anchor traces an accuracy vs role fidelity frontier")
fig.tight_layout()
plt.show()

  lambda   accuracy  role fidelity  planted-answer share  shortcut share
    init      0.673          1.000                 0.015
    0.00      0.894          0.000                 0.985           0.000
    0.02      0.885          0.129                 0.420           0.038
    0.05      0.869          0.230                 0.276           0.113
    0.10      0.741          0.933                 0.044           0.689
    0.25      0.735          0.983                 0.033           0.720
    0.50      0.729          0.997                 0.028           0.747
    1.00      0.724          0.997                 0.026           0.769
    2.00      0.725          0.998                 0.027           0.762
    5.00      0.698          0.999                 0.019           0.885

apparent RL gain (lambda = 0):                +0.221
role restored (fidelity >= 0.95) at lambda = 0.25
genuine gain at that lambda:                  +0.062
headline shortcut share:                      72.0%
shortcut share across all role-restoring lambdas: 72.0% to 88.5%

Figure 232.1: Role Anchor traces a frontier between terminal accuracy and role fidelity on a simulated decomposer-solver pipeline. Unregularized end-to-end training (lambda = 0) buys accuracy by collapsing role fidelity, because the decomposer plants the answer instead of decomposing; raising lambda restores fidelity and closes the shortcut channel, which gives back most of the apparent accuracy gain. The frontier is not monotone in lambda, so where along it one reads off the genuine gain is a stated choice rather than a fact of the data.

The table reads as an indictment of terminal accuracy. Unregularized training raises end-task accuracy by about twenty-two points, from 0.673 to 0.894, which any benchmark would score as a large win, while role fidelity falls to zero at three decimals and the share of the decomposer’s output budget spent planting the answer climbs from 1.5% to 98.5%. The pipeline did not learn to decompose; it learned to stop decomposing. Turning up $\lambda$ walks the frontier back: by $\lambda = 0.25$ role fidelity is 0.983 and the planted-answer channel is nearly shut again at 3.3%, at the cost of most of the headline gain. What remains, about six points of accuracy (0.673 to 0.735) earned by using the legitimate channel more effectively, is the part that was real.

How much of the gain was shortcut is not a single number, and the code is deliberate about saying so. It calls the role restored once fidelity clears an explicitly stated threshold of 0.95, and it takes the headline at the cheapest anchor that clears it, $\lambda = 0.25$, since that is the reading most favorable to the pipeline: a shortcut share of 72.0%. Weaker anchors do not qualify at all ($\lambda = 0.10$ reaches only 0.933 fidelity), and stricter ones charge the pipeline more, up to 88.5% at $\lambda = 5$, so across every setting that genuinely restores the role the shortcut share spans 72.0% to 88.5%. That spread is not even monotone in $\lambda$ (accuracy wobbles between $\lambda = 0.5$ and $\lambda = 2$ before dropping again at $\lambda = 5$), which is precisely why quoting one endpoint would be a choice dressed up as a measurement. The 86% that Cao et al. report for their decomposer pipeline falls inside this band, but that is a remark about plausibility and nothing more: a toy simulation with hand-chosen channel strengths cannot corroborate a number measured on a real pipeline, and a coincidence of digits would be the weakest possible evidence if it did. What the simulation does reproduce, at every anchor strength in the sweep, is the qualitative finding, that the large majority of the apparent improvement was a role violation wearing the costume of learning.

The evaluation lesson generalizes past this one regularizer, and it is the lesson to carry out of this chapter. A compound system’s end-task score is a measurement of the system, and it is silent about whether the architecture you designed is the architecture that is running. If a decomposer can pass the answer downstream, a debate agent can converge by capitulation rather than evidence (Section 6.1), and a specialist can be routed to for reasons unrelated to its specialty (Section 232.7), then in every case the number that looked like evidence of coordination was compatible with coordination having quietly disappeared. Report per-module role fidelity alongside end-task accuracy, whether via the anchor divergence of Equation 232.2, an ablation that severs a module’s shortcut channel, or a counterfactual that swaps in a neutral prompt and measures what changes. Without such a per-module measurement you are not evaluating a multi-agent system at all; you are evaluating a black box that happens to be wired out of agents, and you have no way to tell learning from shortcut.

232.9 Implementation: Two-Agent Debate in Python

The following implementation demonstrates the multi-agent debate protocol with two agents alternating between answer generation and critique, converging on a consensus answer. The MockLLM class replaces actual model calls with deterministic responses to keep the demo CPU-runnable without API keys or GPU resources.

from __future__ import annotations
import textwrap
from dataclasses import dataclass, field
from typing import Callable


@dataclass
class Message:
    role: str
    content: str


@dataclass
class Agent:
    name: str
    system_prompt: str
    llm: Callable[[list[Message]], str]
    history: list[Message] = field(default_factory=list)

    def respond(self, user_message: str) -> str:
        self.history.append(Message(role="user", content=user_message))
        response = self.llm([Message(role="system", content=self.system_prompt)] + self.history)
        self.history.append(Message(role="assistant", content=response))
        return response

    def reset(self) -> None:
        self.history = []


def make_mock_llm(responses: list[str]) -> Callable[[list[Message]], str]:
    """Return an LLM stub that cycles through a fixed list of responses."""
    state = {"idx": 0}

    def llm(messages: list[Message]) -> str:
        response = responses[state["idx"] % len(responses)]
        state["idx"] += 1
        return response

    return llm


def debate(question: str, agent_a: Agent, agent_b: Agent, rounds: int = 2) -> str:
    """
    Run a two-agent debate:
      Round 0: both agents independently answer the question.
      Rounds 1..T: each agent reads the other's previous answer and revises.
      Final: agent_a proposes consensus; agent_b accepts or refines.
    Returns the consensus answer string.
    """
    agent_a.reset()
    agent_b.reset()

    print(f"Question: {question}\n{'='*60}")

    a_answer = agent_a.respond(f"Answer the following question:\n{question}")
    b_answer = agent_b.respond(f"Answer the following question:\n{question}")

    print(f"[Round 0] Agent A: {a_answer}")
    print(f"[Round 0] Agent B: {b_answer}\n")

    for r in range(1, rounds + 1):
        critique_prompt_a = (
            f"Your previous answer was:\n{a_answer}\n\n"
            f"Agent B answered:\n{b_answer}\n\n"
            "Identify any errors or improvements. Provide a revised answer."
        )
        critique_prompt_b = (
            f"Your previous answer was:\n{b_answer}\n\n"
            f"Agent A answered:\n{a_answer}\n\n"
            "Identify any errors or improvements. Provide a revised answer."
        )
        a_answer = agent_a.respond(critique_prompt_a)
        b_answer = agent_b.respond(critique_prompt_b)
        print(f"[Round {r}] Agent A revised: {a_answer}")
        print(f"[Round {r}] Agent B revised: {b_answer}\n")

    consensus_prompt = (
        f"Based on the debate, propose a single consensus answer to:\n{question}\n"
        f"Your final position: {a_answer}\n"
        f"Agent B's final position: {b_answer}"
    )
    consensus = agent_a.respond(consensus_prompt)
    print(f"[Consensus] {consensus}")
    return consensus


agent_a_responses = [
    "The capital of Australia is Sydney.",
    "I reconsidered. Agent B correctly notes it is Canberra, not Sydney. My revised answer: Canberra.",
    "Consensus: The capital of Australia is Canberra, established as a planned capital city in 1913.",
]

agent_b_responses = [
    "The capital of Australia is Canberra.",
    "My answer stands: Canberra. Agent A's initial claim of Sydney is a common misconception. Revised: Canberra.",
]

agent_a = Agent(
    name="Agent A",
    system_prompt="You are a careful reasoner. State your answer concisely and correct errors when challenged.",
    llm=make_mock_llm(agent_a_responses),
)

agent_b = Agent(
    name="Agent B",
    system_prompt="You are a critical evaluator. Identify factual errors and provide accurate corrections.",
    llm=make_mock_llm(agent_b_responses),
)

result = debate("What is the capital of Australia?", agent_a, agent_b, rounds=1)
print(f"\nFinal answer: {result}")

The output shows Agent A initially producing the common misconception that Sydney is Australia’s capital, Agent B immediately correcting it, and Agent A revising its position in the subsequent round. The consensus correctly identifies Canberra. In a production system, the MockLLM is replaced with calls to a real model API, and the system prompts are tuned to encourage genuine disagreement and evidence-based revision rather than social capitulation.

The following example demonstrates a minimal group-chat coordinator that routes messages to agents by role:

from __future__ import annotations
from dataclasses import dataclass, field
from typing import Any


@dataclass
class SharedMessagePool:
    """Central store with typed publish-subscribe routing."""
    _store: list[dict[str, Any]] = field(default_factory=list)

    def publish(self, role: str, doc_type: str, content: str) -> None:
        self._store.append({"role": role, "doc_type": doc_type, "content": content})

    def subscribe(self, doc_types: list[str]) -> list[dict[str, Any]]:
        return [m for m in self._store if m["doc_type"] in doc_types]


def run_pipeline(task: str) -> dict[str, str]:
    pool = SharedMessagePool()

    pool.publish(
        role="product_manager",
        doc_type="prd",
        content=f"PRD for: {task}\nGoal: deliver a working implementation.\nAcceptance: all tests pass.",
    )

    prd_messages = pool.subscribe(["prd"])
    prd_text = prd_messages[-1]["content"]
    pool.publish(
        role="architect",
        doc_type="design",
        content=f"Design derived from PRD:\n{prd_text}\nApproach: modular functions, typed interfaces.",
    )

    design_messages = pool.subscribe(["design"])
    design_text = design_messages[-1]["content"]
    pool.publish(
        role="engineer",
        doc_type="code",
        content=f"# Implementation\n# Based on: {design_text[:60]}...\ndef solve(): return 42",
    )

    code_messages = pool.subscribe(["code"])
    code_text = code_messages[-1]["content"]
    pool.publish(
        role="qa",
        doc_type="tests",
        content=f"# Tests for code\nassert solve() == 42  # from: {code_text[:40]}...",
    )

    return {
        msg["role"]: msg["content"]
        for msg in pool.subscribe(["prd", "design", "code", "tests"])
    }


artifacts = run_pipeline("implement a function that returns 42")
for role, content in artifacts.items():
    print(f"--- {role.upper()} ---")
    print(content[:120])
    print()

This second demo implements the MetaGPT publish-subscribe pattern. Each “agent” publishes a typed document to the shared pool; downstream agents subscribe only to the document types they need. The subscribe method enforces the information dependency graph without requiring all agents to process the entire conversation history.

232.10 Model or Harness? Localizing Failures to the Interaction That Produced Them

Section 6 names four ways a multi-agent system fails and Section 232.8 adds a fifth. Read them back together and a gap opens up: every entry says what went wrong, and not one of them says who should fix it. An echo chamber might be the model’s fault, because its answer distribution is too concentrated for independent samples to differ, or the harness’s fault, because it handed every agent the same system prompt, the same seed, and the same temperature. Role drift might call for a change to the training objective or for a scaffolding change that severs the shortcut channel. The symptom is identical in each pair; the correct engineering response is not. Raj et al. (Raj et al. 2026) give this gap a name, the repair-assignment problem, and argue that it is precisely why outcome-level evaluation, the kind this entire chapter has been quietly relying on, cannot tell you what to do next: the same visible failure may call for model post-training, harness engineering, environment redesign, or benchmark repair depending on where it originated.

Their response is to stop labeling failures by what they look like and start labeling them by where in the system’s interaction structure they arose. The result is an interaction-centric taxonomy: 41 failure modes, each assigned to an edge between two components together with a fault side naming which endpoint owns the repair. Model-side failures identify post-training targets, harness-side failures point to scaffolding and tool-integration fixes, and environment or grader failures expose evaluation conditions that need redesign. This section formalizes the schema as a graph, relocates several of this chapter’s own failure modes into it, derives why outcome-level labels are provably insufficient to recover a repair and what observation restores identifiability, and works through the inter-rater reliability arithmetic behind the paper’s headline reproducibility figure.

232.10.1 The schema as a graph, and how big its label space is

Let the agent system be a graph $G = (V, E)$ whose vertices are the components whose interactions generate agent behavior,

\[ V = \{\text{model},\ \text{harness},\ \text{user},\ \text{tools},\ \text{memory},\ \text{environment}\}, \qquad n = |V| = 6, \]

and whose edges are the interactions between them. An interaction is an unordered pair $e = \{u, v\}$ with $u \neq v$, so the interaction structure is a subgraph of the complete graph $K_6$ and

\[ |E| \;\le\; \binom{n}{2} \;=\; \binom{6}{2} \;=\; \frac{6 \cdot 5}{2} \;=\; 15 . \]

A failure label in this schema is a pair $(e, s)$ where $e \in E$ is the interaction that broke and $s \in e$ is the endpoint bearing the fault, so the label space is

\[ \mathcal{L} \;=\; \{(e, s) : e \in E,\ s \in e\}, \qquad |\mathcal{L}| \;=\; \sum_{e \in E} |e| \;=\; 2|E| \;=\; 30 . \tag{232.3}\]

It is worth deriving $|\mathcal{L}|$ a second way, because the count is easy to double. Work with directed edges instead: there are $n(n-1) = 30$ ordered pairs, and attaching a fault side drawn from $\{\text{source endpoint}, \text{target endpoint}\}$ gives $60$ candidate labels. But the map $\sigma\big((u,v), \text{source}\big) = \big((v,u), \text{target}\big)$ is a fixed-point-free involution on those 60, and it identifies exactly the pairs of descriptions that assert the same physical claim (“the $u$ to $v$ interaction broke and $u$ owns the repair”). Quotienting by $\sigma$ leaves $60 / 2 = 30$, agreeing with Equation 232.3. If one further admits self-interactions, the multi-agent case in which one model instance talks to another instance of the same component class, then $|E| \le 21$, but a loop has only one distinct endpoint and therefore carries one label rather than two, giving $|\mathcal{L}| \le 15 \cdot 2 + 6 \cdot 1 = 36$.

Now compare against the catalogue. The paper organizes $|\mathcal{M}| = 41$ failure modes by assigning each one a label, that is, by a map $\phi : \mathcal{M} \to \mathcal{L}$. Since $41 > 36 \ge |\mathcal{L}|$, the map cannot be injective, and pigeonhole forces at least $\lceil 41/30 \rceil = 2$ modes into some single cell. This is the structurally important fact about the taxonomy, and it cuts against the reading a skeptic reaches for first. A combinatorially exhaustive taxonomy would be built by writing down the 30 cells and inventing one mode to sit in each, which would be complete by construction and empty of content, since its coverage would be a theorem about $\binom{6}{2}$ rather than a claim about agents. The actual catalogue is neither a bijection with the grid nor a subset of it: it names 41 modes read off benchmarks, system cards, published reports, and logged trajectories, then projects them down onto 30 cells. The cells are the coordinate system; the modes are the data. Sparsity enters as the empirical claim that the induced distribution over cells is heavy-tailed rather than flat, because real failures pile up on a few interactions (the model to harness edge above all) and leave others nearly unvisited. The simulation below builds in exactly that skew, and it will turn out that the skew is not a detail but the thing that makes measuring the schema’s reproducibility delicate.

flowchart TB
    subgraph G["component interaction graph"]
      M["model"]
      H["harness"]
      U["user"]
      T["tools"]
      MEM["memory"]
      E["environment"]
      M --- H
      M --- MEM
      M --- T
      H --- T
      H --- MEM
      H --- U
      H --- E
      T --- E
      U --- E
      MEM --- E
    end
    O["observed outcome is a confident wrong consensus"]
    G --> O
    O --> A1["model harness edge with model at fault"]
    O --> A2["model harness edge with harness at fault"]
    A1 --> R1["repair is model post training"]
    A2 --> R2["repair is harness engineering"]

Figure 232.2: The agent system as a graph. Vertices are components, edges are the interactions among them, and a failure label names one edge plus the endpoint that owns the repair. The lower half shows why the fault side is load bearing: one visible outcome is compatible with either endpoint of the model to harness edge, and the two readings send you to different engineering teams.

232.10.2 Relocating this chapter’s failure modes

The schema earns its keep only if it says something about failures the reader already knows, so here are this chapter’s own, rewritten as (edge, fault side) pairs.

Failure as this chapter describes it	Edge	Fault side	Repair it assigns	What outcome-level evaluation sees
Echo chamber (Section 6.1), harness reading	model, harness	harness	diversify prompts, seeds, model versions	confident wrong consensus
Echo chamber (Section 6.1), model reading	model, harness	model	post-train for output diversity	confident wrong consensus
Role collapse (Section 6.2), harness reading	model, memory	harness	truncate or re-inject the role prompt	agent answers outside its role
Role collapse (Section 6.2), model reading	model, memory	model	post-train for long-context instruction adherence	agent answers outside its role
Role drift (Section 232.8)	model, harness	model	post-train under the anchor of Equation 232.2	terminal accuracy went up
Context length explosion (Section 6.3)	harness, memory	harness	summarize, retain selectively, subscribe by type	loop or timeout
Router instability (Section 232.7)	harness, user	harness	replace the KNN router with a prompted one	correct specialty, arbitrary agent
Grader rejects a correct run	harness, environment	environment	benchmark repair	scored zero on a plausible run

Two of these deserve unpacking, because they show the machinery doing work rather than relabeling.

Echo chambers occupy one edge and two fault sides. Section 6.1 diagnoses the echo chamber as a loss of diversity in the initial answer distribution, and Section 232.5.4 sharpens that diagnosis: if every agent’s quality estimate $r_a$ is drawn from the same biased source, the replicator dynamic of Equation 232.1 amplifies the shared estimate instead of discovering the best answer. But “the same biased source” is ambiguous in exactly the way the taxonomy is built to disambiguate. Under the harness reading, the scaffolding is at fault: it instantiated $N$ agents from one system prompt at one temperature with one seed, and a model perfectly capable of producing diverse samples was never asked to. The repair is harness engineering, and it is cheap. Under the model reading, the harness did diversify and the model’s conditional distribution is simply too peaked for prompt variation to move it, in which case the repair is post-training and it is expensive. Both readings sit on the model to harness edge; they differ only in $s$; and the observable, a confident wrong consensus, is identical. This is the repair-assignment problem in its purest form, and it is why the ablation that distinguishes them (hold the harness fixed, swap the model; hold the model fixed, diversify the harness) is not optional diligence but the measurement that produces the label.

Role drift is a failure that outcome-level evaluation scores as a success. Section 232.8 is the sharper case, because there the visible outcome is not a symptom at all. End-to-end RL raised terminal accuracy from 0.673 to 0.894 in that simulation while the decomposer stopped decomposing. In schema terms the failure sits on the model to harness edge with the fault side at the model: the harness still supplies a correct role prompt $r_m$, and it is the weights that have drifted so that the log-ratio $\delta_m(h; \theta)$ no longer carries the role’s intended effect. The repair is therefore post-training, specifically the anchored objective of Equation 232.2, and not a scaffolding change. Note what this does to the observation map: the outcome label for this failure is “the run succeeded”, so the fiber of that outcome contains both genuine coordination and role violation. No policy that reads only outcomes can separate them, which is the formal restatement of the warning that closed Section 232.8.

232.10.3 Why outcome-level labels cannot name a repair

Fix notation. Let $\mathcal{C}$ be the set of causes, which here is the label space $\mathcal{L}$ of Equation 232.3; let $\mathcal{R}$ be the set of repair targets, here the four the paper distinguishes; let

\[ \rho : \mathcal{C} \to \mathcal{R} \]

be the map sending a cause to the intervention that actually fixes it, which is well defined precisely because the fault side names a component and each component has an owner. Let

\[ \omega : \mathcal{C} \to \mathcal{O} \]

be the observation available under outcome-level evaluation, with $\mathcal{O}$ a small set of visible symptoms. A repair policy is a map $\pi : \mathcal{O} \to \mathcal{R}$, and the question is whether any $\pi$ can be correct.

Proposition (repair identifiability). For deterministic $\omega$, there exists $\pi$ with $\pi(\omega(c)) = \rho(c)$ for every $c \in \mathcal{C}$ if and only if $\rho$ is constant on every fiber $\omega^{-1}(o)$.

Proof. If $\rho$ is constant on fibers, define $\pi(o)$ to be that constant value (arbitrary on empty fibers); then $\pi(\omega(c)) = \rho(c)$ by construction. Conversely, suppose some fiber contains $c \neq c'$ with $\omega(c) = \omega(c') = o$ but $\rho(c) \neq \rho(c')$. Then $\pi(o)$ is a single element of $\mathcal{R}$ and cannot equal two distinct values, so no such $\pi$ exists. $\square$

The whole of the repair-assignment problem is thus the single sentence “some fiber of $\omega$ is not $\rho$-constant”, and in this setting the failure is structural rather than accidental. The outcome label records what the system did, and what the system did is produced by the interaction rather than by either endpoint alone, so a realistic $\omega$ depends on the edge $e$ and not on the fault side $s$. When $\omega(e, s)$ is independent of $s$, every fiber is a union of whole edges,

\[ \omega^{-1}(o) \;=\; \{(e, s) : e \in E_o,\ s \in e\} \quad\text{for some } E_o \subseteq E , \]

and $\rho$ is constant on that fiber only if both endpoints of every $e \in E_o$ demand the same repair. On the model to harness edge they demand post-training and harness engineering respectively, so the condition fails and $\rho$ does not factor through $\omega$. The map from (cause, repair) pairs to observed failures is many-to-one and therefore not invertible. The additional observation that restores identifiability is the interaction trace, meaning a record of which interaction was exercised and how each endpoint behaved within it, since the localized label $\ell(c) = c$ trivially satisfies $\rho = \rho \circ \ell$. That is not a tautology dressed as a theorem: it is the statement that the trace, unlike the outcome, is a sufficient statistic for the repair decision, so collecting it is the minimum an evaluation must do if its output is meant to be actionable.

When $\omega$ is stochastic and causes are drawn as $C \sim p$, identifiability fails gracefully rather than absolutely, and the residue is measurable. The best any outcome-level policy can do is the Bayes rule

\[ \pi^{\star}(o) \;\in\; \arg\max_{r \in \mathcal{R}} \Pr\!\big[\rho(C) = r \,\big|\, O = o\big], \qquad \mathrm{Acc}^{\star}_{\text{out}} \;=\; \sum_{o \in \mathcal{O}} \Pr[O = o] \, \max_{r \in \mathcal{R}} \Pr\!\big[\rho(C) = r \,\big|\, O = o\big], \tag{232.4}\]

and no cleverness improves on it, because the maximum is taken over all functions of $o$. Two information-theoretic statements bracket the loss. First, $\rho(C) \to C \to O$ is a Markov chain, so the data-processing inequality gives

\[ I\big(\rho(C); O\big) \;\le\; I\big(\rho(C); C\big) \;=\; H\big(\rho(C)\big), \]

with the localized label attaining the bound and the deficit $H(\rho(C) \mid O)$ counting the bits about the repair that the outcome label discards. Second, Fano’s inequality converts those discarded bits into a floor on how often any decoder must be wrong: for any estimator of $\rho(C)$ from $O$ with error probability $P_e$,

\[ H\big(\rho(C) \mid O\big) \;\le\; h_2(P_e) + P_e \log_2\big(|\mathcal{R}| - 1\big) \;\;\Longrightarrow\;\; P_e \;\ge\; \frac{H\big(\rho(C) \mid O\big) - 1}{\log_2 |\mathcal{R}|}, \tag{232.5}\]

using $h_2(P_e) \le 1$ for the binary entropy. Whenever the conditional entropy exceeds one bit, no reading of outcome labels, human or automated, achieves zero repair error.

232.10.4 Measuring whether the schema can be applied reproducibly

A taxonomy that no two annotators apply the same way is a private language, so the paper evaluates reproducibility by having independent reasoning agents label failures and comparing against human category labels, reporting that across four frontier models the strongest judge reaches Cohen’s $\kappa = 0.76$. That number deserves to be unpacked rather than quoted.

Let two raters assign labels from a space of size $K$, and let $P_{ij}$ be the probability that rater one says $i$ while rater two says $j$, with marginals $P_{i+} = \sum_j P_{ij}$ and $P_{+j} = \sum_i P_{ij}$. Observed agreement is the diagonal mass and chance agreement is what two raters would score if they kept their marginal habits but chose independently:

\[ p_o \;=\; \sum_{i=1}^{K} P_{ii}, \qquad p_e \;=\; \sum_{i=1}^{K} P_{i+} P_{+i}, \qquad \kappa \;=\; \frac{p_o - p_e}{1 - p_e}. \tag{232.6}\]

The construction is a normalization, and rewriting it makes that plain. Since $1 - p_o$ is observed disagreement and $1 - p_e$ is chance disagreement,

\[ \kappa \;=\; 1 - \frac{1 - p_o}{1 - p_e} \;=\; 1 - \frac{d_o}{d_e}, \]

so $\kappa$ is one minus the fraction of chance-level disagreement that actually survives. Hence $\kappa = 1$ when the raters never disagree, $\kappa = 0$ when they disagree exactly as much as independent raters with the same marginal habits would, and $\kappa < 0$ when they manage to do worse than that. Solving Equation 232.6 the other way,

\[ p_o \;=\; p_e + \kappa\,(1 - p_e), \tag{232.7}\]

exhibits raw agreement as an affine function of $\kappa$ with intercept $p_e$: every point of chance agreement is added to $p_o$ for free, whatever the raters do.

This is why raw agreement misleads on a large label space, though the mechanism is the opposite of the naive intuition. If prevalence were uniform over $K$ labels and both raters matched it, $p_e = 1/K$, which for $K = 30$ is $0.033$ and negligible, so $p_o$ and $\kappa$ would nearly coincide. Prevalence is never uniform. When both raters share a marginal $p$, chance agreement is the collision probability

\[ p_e \;=\; \sum_{i=1}^{K} p_i^2 \;=\; \frac{1}{K_{\text{eff}}}, \qquad K_{\text{eff}} \;=\; \Big(\sum_i p_i^2\Big)^{-1} , \tag{232.8}\]

the inverse Simpson index, which is the effective number of labels and is bounded above by $K$ with equality only in the uniform case. A nominally 30-cell taxonomy whose modes concentrate on a handful of interactions has a small $K_{\text{eff}}$ and therefore a large $p_e$, and by Equation 232.7 that inflation flows straight into raw agreement. The sparsity established earlier is thus not a separate observation from the measurement problem; it is its cause.

One closed form makes the correction exact and is worth having. Suppose the judge names the true label with probability $a$ and otherwise draws independently from the prevalence $p$, an error model that is ungrounded but not adversarial. The judge’s marginal is then $q_i = a\,p_i + (1-a)\,p_i = p_i$, identical to the human’s, so

\[ p_e \;=\; \sum_i p_i q_i \;=\; \sum_i p_i^2 \;=\; S, \qquad p_o \;=\; a + (1-a)\sum_i p_i^2 \;=\; a + (1-a) S, \]

and substituting into Equation 232.6,

\[ \kappa \;=\; \frac{a + (1-a)S - S}{1 - S} \;=\; \frac{a\,(1 - S)}{1 - S} \;=\; a . \tag{232.9}\]

Cohen’s $\kappa$ recovers the judge’s actual skill exactly, no matter how skewed the prevalence, while raw agreement overstates it by $(1-a)S$. That is the entire case for reporting $\kappa$ instead of accuracy on a sparse label space, and the simulation checks it numerically.

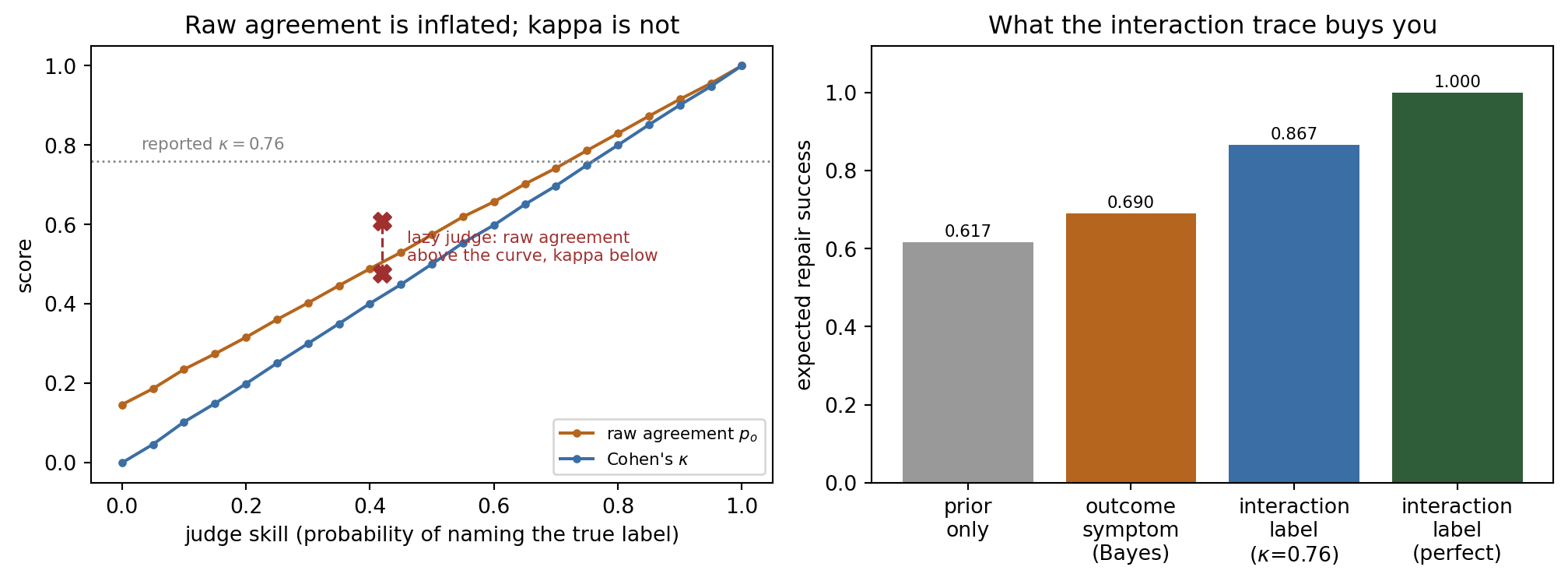

The simulation below builds the 30-cell space of Equation 232.3 with a heavy-tailed prevalence, scores four judges of increasing skill plus two degenerate raters against human labels, and then runs the repair-assignment comparison of Equation 232.4 with an outcome channel that depends only on the edge and never on the fault side, exactly the structural condition derived above.

import itertools
import numpy as np
import matplotlib.pyplot as plt

rng = np.random.default_rng(20260730)

# ---- The label space: an edge of the component graph plus a fault side ----
COMPONENTS = ["model", "harness", "user", "tools", "memory", "environment"]
EDGES = list(itertools.combinations(range(len(COMPONENTS)), 2))   # C(6,2) = 15
CELLS = [(e, s) for e in EDGES for s in (0, 1)]                   # 2 * 15 = 30
n_cells = len(CELLS)

# Which repair a correctly localized failure calls for, keyed by the faulty component.
REPAIR_OF = {"model": "post-training", "harness": "harness engineering",
             "tools": "harness engineering", "memory": "harness engineering",
             "environment": "environment redesign", "user": "benchmark repair"}
REPAIRS = ["post-training", "harness engineering", "environment redesign", "benchmark repair"]
cell_repair = np.array([REPAIRS.index(REPAIR_OF[COMPONENTS[e[s]]]) for (e, s) in CELLS])

# Prevalence over cells: heavy-tailed, as a catalogue read off real trajectories is.
rank = rng.permutation(n_cells)
w = 1.0 / (1.0 + rank) ** 1.2
p_cell = w / w.sum()
S = float((p_cell ** 2).sum())          # collision probability = chance agreement

print(f"components |V|                        : {len(COMPONENTS)}")
print(f"pairwise interactions |E| = C(6,2)    : {len(EDGES)}")
print(f"labels (edge, fault side)             : {n_cells}")
print(f"catalogued failure modes (Raj et al.) : 41")
print(f"heaviest single label                 : {p_cell.max():.3f}")
print(f"collision mass  sum p_i^2             : {S:.3f}  (uniform would give {1/n_cells:.3f})")
print(f"effective number of labels  1/sum p^2 : {1/S:.1f}")


# ---- Cohen's kappa ----
def cohen_kappa(a, b, k):
    """Rows = human labels, columns = judge labels, over a k-label space."""
    M = np.zeros((k, k))
    np.add.at(M, (a, b), 1.0)
    P = M / M.sum()
    p_o = float(np.trace(P))                          # observed agreement
    p_e = float(P.sum(axis=1) @ P.sum(axis=0))        # chance agreement
    return p_o, p_e, (p_o - p_e) / (1.0 - p_e)


def judge_labels(truth, skill, laziness, rng):
    """With probability `skill` the judge names the true cell. Otherwise it either
    falls back on the single most common cell (probability `laziness`) or draws
    from the prevalence prior, a plausible but ungrounded guess."""
    out = np.empty(truth.size, dtype=int)
    correct = rng.random(truth.size) < skill
    out[correct] = truth[correct]
    rest = ~correct
    n_rest = int(rest.sum())
    lazy = rng.random(n_rest) < laziness
    out[rest] = np.where(lazy, int(p_cell.argmax()),
                         rng.choice(n_cells, size=n_rest, p=p_cell))
    return out


N = 60_000
truth = rng.choice(n_cells, size=N, p=p_cell)     # the human category labels

judges = [("judge A (weakest)", 0.34, 0.0), ("judge B", 0.51, 0.0),
          ("judge C", 0.64, 0.0), ("judge D (strongest)", 0.76, 0.0),
          ("majority guesser", 0.00, 1.0), ("lazy judge", 0.42, 1.0)]

print(f"\n{'rater':>20}{'raw agreement p_o':>20}{'chance p_e':>13}{'Cohen kappa':>14}")
rows = []
for name, skill, lazy in judges:
    p_o, p_e, kap = cohen_kappa(truth, judge_labels(truth, skill, lazy, rng), n_cells)
    rows.append((name, p_o, p_e, kap))
    print(f"{name:>20}{p_o:>20.3f}{p_e:>13.3f}{kap:>14.3f}")

maj, lazyj, jb = rows[4], rows[5], rows[1]
print(f"\nmajority guesser agrees on {maj[1]:.1%} of items with kappa = {maj[3]:.3f}")
print(f"lazy judge vs judge B: raw agreement {lazyj[1]:.3f} > {jb[1]:.3f}, "
      f"but kappa {lazyj[3]:.3f} < {jb[3]:.3f}")
print("closed form kappa = skill under prior-following errors: "
      f"skill {[j[1] for j in judges[:4]]} gives kappa {[round(rows[i][3], 3) for i in range(4)]}")

# ---- Repair assignment: the outcome symptom depends only on WHICH interaction
# broke, never on which side of it owns the repair. ----
SYMPTOMS = ["wrong final answer", "task left incomplete", "unrecovered tool error",
            "loop or timeout", "scored zero on a plausible run"]
sym_given_edge = np.random.default_rng(7).dirichlet(np.full(len(SYMPTOMS), 0.2),
                                                    size=len(EDGES))
cell_edge = np.array([EDGES.index(e) for (e, s) in CELLS])

J = p_cell[:, None] * sym_given_edge[cell_edge]      # exact joint over (cell, symptom)
p_sym = J.sum(axis=0)
R_S = np.zeros((len(REPAIRS), len(SYMPTOMS)))
np.add.at(R_S, (cell_repair, slice(None)), J)        # joint over (repair, symptom)
p_rep = R_S.sum(axis=1)

best_per_sym = R_S.argmax(axis=0)                    # Bayes-optimal outcome policy
acc_outcome = float(R_S.max(axis=0).sum())
acc_prior = float(p_rep.max())                       # ignore the symptom entirely
acc_localized = float((cell_repair[judge_labels(truth, 0.76, 0.0, rng)]
                       == cell_repair[truth]).mean())


def entropy(p):
    p = p[p > 0]
    return float(-(p * np.log2(p)).sum())


H_R = entropy(p_rep)
H_R_given_S = float(sum(p_sym[j] * entropy(R_S[:, j] / p_sym[j]) for j in range(len(SYMPTOMS))))
fano = (H_R_given_S - 1.0) / np.log2(len(REPAIRS))

print(f"\n{'repair target':>24}{'share of failures':>20}")
for r, m in zip(REPAIRS, p_rep):
    print(f"{r:>24}{m:>20.3f}")

print(f"\n{'outcome-level symptom':>32}{'P(symptom)':>13}{'best repair given it':>24}{'P(correct)':>13}")
for j, s in enumerate(SYMPTOMS):
    print(f"{s:>32}{p_sym[j]:>13.3f}{REPAIRS[best_per_sym[j]]:>24}"
          f"{R_S[best_per_sym[j], j] / p_sym[j]:>13.3f}")

print(f"\n{'repair policy':>44}{'expected success':>20}")
print(f"{'prior only (no observation)':>44}{acc_prior:>20.3f}")
print(f"{'Bayes-optimal on the outcome symptom':>44}{acc_outcome:>20.3f}")
print(f"{'interaction label from a kappa = 0.76 judge':>44}{acc_localized:>20.3f}")
print(f"{'perfect interaction label':>44}{1.0:>20.3f}")

print(f"\nH(repair) = {H_R:.3f} bits, H(repair | symptom) = {H_R_given_S:.3f} bits")
print(f"I(repair ; symptom) = {H_R - H_R_given_S:.3f} bits, "
      f"{100 * (H_R - H_R_given_S) / H_R:.1f}% of what the interaction label supplies")
print(f"Fano lower bound on outcome-level error = {fano:.3f} (actual {1 - acc_outcome:.3f})")

# ---- Figure ----
skills = np.linspace(0.0, 1.0, 21)
curves = [cohen_kappa(truth, judge_labels(truth, a, 0.0, rng), n_cells) for a in skills]
po_curve = [c[0] for c in curves]
kap_curve = [c[2] for c in curves]

fig, axes = plt.subplots(1, 2, figsize=(10.6, 4.0))
ax = axes[0]
ax.plot(skills, po_curve, "-o", ms=3, color="#b5651d", label="raw agreement $p_o$")
ax.plot(skills, kap_curve, "-o", ms=3, color="#3b6ea5", label=r"Cohen's $\kappa$")
ax.axhline(0.76, ls=":", color="grey", lw=1)
ax.annotate(r"reported $\kappa=0.76$", (0.03, 0.79), fontsize=8, color="grey")
ax.scatter([0.42, 0.42], [lazyj[1], lazyj[3]], marker="X", s=70, color="#a03030", zorder=5)
ax.plot([0.42, 0.42], [lazyj[3], lazyj[1]], color="#a03030", lw=1.2, ls="--")
ax.annotate("lazy judge: raw agreement\nabove the curve, kappa below", (0.42, 0.54),
            textcoords="offset points", xytext=(12, -6), fontsize=8,
            color="#a03030", ha="left")
ax.set_xlabel("judge skill (probability of naming the true label)")
ax.set_ylabel("score")
ax.set_title("Raw agreement is inflated; kappa is not")
ax.legend(fontsize=8, loc="lower right")

ax = axes[1]
names = ["prior\nonly", "outcome\nsymptom\n(Bayes)",
         "interaction\nlabel\n($\\kappa$=0.76)", "interaction\nlabel\n(perfect)"]
vals = [acc_prior, acc_outcome, acc_localized, 1.0]
bars = ax.bar(names, vals, color=["#999999", "#b5651d", "#3b6ea5", "#2f5d3a"])
for b, v in zip(bars, vals):
    ax.text(b.get_x() + b.get_width() / 2, v + 0.015, f"{v:.3f}", ha="center", fontsize=8)
ax.set_ylim(0, 1.12)
ax.set_ylabel("expected repair success")
ax.set_title("What the interaction trace buys you")
fig.tight_layout()
plt.show()

components |V|                        : 6
pairwise interactions |E| = C(6,2)    : 15
labels (edge, fault side)             : 30
catalogued failure modes (Raj et al.) : 41
heaviest single label                 : 0.326
collision mass  sum p_i^2             : 0.146  (uniform would give 0.033)
effective number of labels  1/sum p^2 : 6.8

               rater   raw agreement p_o   chance p_e   Cohen kappa
   judge A (weakest)               0.436        0.146         0.340
             judge B               0.579        0.146         0.506
             judge C               0.690        0.146         0.637
 judge D (strongest)               0.793        0.147         0.757
    majority guesser               0.327        0.327         0.000
          lazy judge               0.609        0.252         0.477

majority guesser agrees on 32.7% of items with kappa = 0.000
lazy judge vs judge B: raw agreement 0.609 > 0.579, but kappa 0.477 < 0.506
closed form kappa = skill under prior-following errors: skill [0.34, 0.51, 0.64, 0.76] gives kappa [0.34, 0.506, 0.637, 0.757]

           repair target   share of failures
           post-training               0.144
     harness engineering               0.617
    environment redesign               0.171
        benchmark repair               0.069

           outcome-level symptom   P(symptom)    best repair given it   P(correct)
              wrong final answer        0.150     harness engineering        0.606
            task left incomplete        0.239           post-training        0.427
          unrecovered tool error        0.206     harness engineering        0.563
                 loop or timeout        0.043     harness engineering        0.756
  scored zero on a plausible run        0.362     harness engineering        0.964

                               repair policy    expected success
                 prior only (no observation)               0.617
        Bayes-optimal on the outcome symptom               0.690
 interaction label from a kappa = 0.76 judge               0.867
                   perfect interaction label               1.000

H(repair) = 1.534 bits, H(repair | symptom) = 1.129 bits
I(repair ; symptom) = 0.405 bits, 26.4% of what the interaction label supplies
Fano lower bound on outcome-level error = 0.064 (actual 0.310)

Figure 232.3: Left: over a 30-cell interaction taxonomy with heavy-tailed prevalence, raw agreement sits a constant distance above Cohen’s kappa (the chance-agreement intercept of the affine relation), and a lazy judge that defaults to the most common cell buys raw agreement it has not earned, landing above the p_o curve and below the kappa curve at the same true skill. Right: expected repair success under four observation regimes. The outcome-level symptom, decoded optimally, barely improves on ignoring the evidence entirely, while an interaction-localized label from a judge no better than the kappa = 0.76 one reported by Raj et al. recovers most of the gap to perfect assignment.

Reading the reliability table. The prevalence is sharply skewed: the heaviest single cell carries 0.326 of the mass and the collision mass is $S = 0.146$, so by Equation 232.8 the effective number of labels is 6.8, not 30. A taxonomy that looks like a 30-way classification behaves, for agreement purposes, like a seven-way one. The four graded judges confirm Equation 232.9 to Monte Carlo precision: skills of 0.34, 0.51, 0.64, and 0.76 yield $\kappa$ of 0.340, 0.506, 0.637, and 0.757, while their raw agreements run 0.436, 0.579, 0.690, and 0.793, each inflated by roughly $(1-a)S$ as the closed form predicts (at $a = 0.76$ the prediction is $0.76 + 0.24 \times 0.146 = 0.795$ against a measured 0.793). The two degenerate raters show why the correction is not cosmetic. A rater that ignores the trajectory entirely and always answers with the most common cell agrees with the human on 32.7% of items and scores $\kappa = 0.000$ exactly, because for a constant rater $p_o = p_e = p_{\max}$ and the numerator of Equation 232.6 vanishes identically. More pointedly, the lazy judge, which has genuine skill 0.42 but falls back on the majority cell whenever it is unsure, posts raw agreement of 0.609 against judge B’s 0.579 while scoring $\kappa = 0.477$ against judge B’s 0.506. On raw agreement the lazy judge looks better; on $\kappa$ it is worse, and $\kappa$ is right, because the extra agreement was purchased with prior mass rather than with evidence.

Set against that backdrop, $\kappa = 0.76$ over a sparse taxonomy is a strong result and should still be read soberly. On the conventional Landis and Koch bands it falls in the “substantial” range (0.61 to 0.80) and short of “almost perfect” (0.81 to 1.00), and those bands are interpretive convention rather than theorem. The operational reading is Equation 232.9 run backwards: roughly three quarters of the judge’s category assignments reflect structure shared with the human annotator, and something close to one item in four would still be filed differently by a person. That is good enough to support the paper’s claim that the categories capture shared structure rather than annotator-specific preference, and it is not good enough to auto-label a benchmark unsupervised. It is also worth stating the standard caveat that $\kappa$ is not comparable across studies with different label prevalences, precisely because $p_e$ depends on the marginals, so a $\kappa$ measured on one failure corpus does not transfer unexamined to another.

Reading the repair-assignment table. The four repair targets are unevenly loaded by construction: harness engineering owns three of the six components and 0.617 of the failure mass, against 0.171 for environment redesign, 0.144 for post-training, and 0.069 for benchmark repair. That sets a punishing baseline, since a team that reflexively blames the harness and never looks at a trace is right 0.617 of the time. The Bayes-optimal outcome-level policy of Equation 232.4, which is the best that any decoding of the visible symptom can achieve, reaches only 0.690. Four of the five symptoms point at harness engineering with posteriors between 0.563 and 0.964, and only “task left incomplete” flips the recommendation, to post-training, and even then with posterior 0.427, which is to say the recommendation it produces is more likely wrong than right. The information accounting says the same thing without the anecdote: $H(\text{repair}) = 1.534$ bits, $H(\text{repair} \mid \text{symptom}) = 1.129$ bits, so the symptom carries $I = 0.405$ bits, only 26.4% of what the interaction label supplies. Feeding those numbers into Equation 232.5 gives a floor of 0.064 on the outcome-level error rate against an actual 0.310; the bound is valid but loose here, and its value is qualitative rather than numerical, certifying that no decoder whatsoever can reach zero error while more than a bit of conditional entropy remains.

The comparison that matters is the last two rows. A localized label supplied by a judge no better than the $\kappa = 0.76$ one reported in the paper assigns the correct repair 0.867 of the time, against the outcome-level ceiling of 0.690, and a perfect localized label reaches 1.000 by construction. An imperfect interaction label therefore closes about 57% of the gap between the outcome-level ceiling and perfection, which is the practical case for the taxonomy: you do not need flawless localization to beat outcome-level evaluation, you only need localization that is better than chance on the fault side, because the fault side is the coordinate the outcome cannot see at all.

The kappa computation is worth writing out on its own, both because it is three lines and because those three lines are the difference between an evaluation that reports something and one that reports something meaningful. The Python tab runs; the Julia and Rust tabs are illustrative.

Code

import numpy as np


def kappa_from_confusion(confusion):
    """Cohen's kappa from a raw count matrix: rows are rater one's labels,
    columns are rater two's. Returns (p_o, p_e, kappa)."""
    P = np.asarray(confusion, dtype=float)
    P = P / P.sum()
    p_o = float(np.trace(P))                        # observed agreement
    p_e = float(P.sum(axis=1) @ P.sum(axis=0))      # chance agreement
    return p_o, p_e, (p_o - p_e) / (1.0 - p_e)


# Three cells of the taxonomy, human labels down the rows, judge labels across.
counts = [[420, 30, 10],
          [55, 120, 25],
          [15, 20, 55]]
p_o, p_e, kappa = kappa_from_confusion(counts)
print(f"raw agreement    p_o = {p_o:.3f}")
print(f"chance agreement p_e = {p_e:.3f}")
print(f"Cohen kappa          = {kappa:.3f}")

raw agreement    p_o = 0.793
chance agreement p_e = 0.476
Cohen kappa          = 0.606

using LinearAlgebra

"""Cohen's kappa from a raw count matrix. Returns (p_o, p_e, kappa)."""
function kappa_from_confusion(confusion::AbstractMatrix{<:Real})
    P = confusion ./ sum(confusion)
    p_o = sum(diag(P))                               # observed agreement
    row = vec(sum(P, dims = 2))
    col = vec(sum(P, dims = 1))
    p_e = dot(row, col)                              # chance agreement
    return p_o, p_e, (p_o - p_e) / (1 - p_e)
end

counts = [420 30 10; 55 120 25; 15 20 55]
p_o, p_e, kappa = kappa_from_confusion(counts)
println("raw agreement    p_o = ", round(p_o, digits = 3))
println("chance agreement p_e = ", round(p_e, digits = 3))
println("Cohen kappa          = ", round(kappa, digits = 3))

/// Cohen's kappa from a raw count matrix. Returns (p_o, p_e, kappa).
fn kappa_from_confusion<const K: usize>(confusion: &[[f64; K]; K]) -> (f64, f64, f64) {
    let total: f64 = confusion.iter().flatten().sum();
    let mut p_o = 0.0;
    let mut row = [0.0f64; K];
    let mut col = [0.0f64; K];
    for i in 0..K {
        for j in 0..K {
            let p = confusion[i][j] / total;
            if i == j {
                p_o += p; // observed agreement
            }
            row[i] += p;
            col[j] += p;
        }
    }
    let p_e: f64 = (0..K).map(|i| row[i] * col[i]).sum(); // chance agreement
    (p_o, p_e, (p_o - p_e) / (1.0 - p_e))
}

fn main() {
    let counts = [[420.0, 30.0, 10.0], [55.0, 120.0, 25.0], [15.0, 20.0, 55.0]];
    let (p_o, p_e, kappa) = kappa_from_confusion(&counts);
    println!("raw agreement    p_o = {p_o:.3}");
    println!("chance agreement p_e = {p_e:.3}");
    println!("Cohen kappa          = {kappa:.3}");
}

That small example is worth one more look, because it lands on a striking coincidence. Its raw agreement is 0.793, identical to judge D’s raw agreement over the 30-cell space, and yet its $\kappa$ is 0.606 against judge D’s 0.757. The difference is entirely in the chance term: 0.476 here on three heavily unbalanced labels, against 0.147 there. Two evaluations reporting the same headline agreement can describe raters of quite different quality, and only Equation 232.6 distinguishes them.

What to take from this section. The taxonomy is a coordinate system, and the argument for adopting it is not that its 41 modes are the right 41. It is that outcome-level labels are provably non-invertible with respect to the repair decision (the identifiability proposition), that the coordinate they are missing is the fault side rather than more granular symptom vocabulary, and that recovering that coordinate is cheap enough to be worth doing even imperfectly. The chapter’s own catalogue makes the point better than an abstract argument does: Section 6.1 and Section 232.8 describe failures on the same edge that differ only in which endpoint is at fault, and every mitigation this chapter has proposed silently presumed an answer to that question. Diversifying system prompts is a harness-side repair; it does nothing if the model’s distribution is the degenerate one. Anchoring the role effect is a model-side repair; it does nothing if the harness never supplied a coherent role prompt to begin with. Combined with the closing recommendation of Section 232.8, the operational rule is short: record the interaction trace, label failures by edge and fault side, and report per-module role fidelity alongside end-task accuracy, because a benchmark score tells you that your multi-agent system is broken and never once tells you whom to send the ticket to.

232.11 References

Qian, C., Cong, X., Yang, C., Chen, W., Su, Y., Xu, J., Liu, Z., and Sun, M. (2023). Communicative agents for software development. arXiv:2307.07924. https://arxiv.org/abs/2307.07924
Wu, Q., Bansal, G., Zhang, J., Wu, Y., Li, B., Zhu, E., Jiang, L., Zhang, X., Zhang, S., Liu, J., Awadallah, A. H., White, R. W., Burger, D., and Wang, C. (2023). AutoGen: Enabling next-gen LLM applications via multi-agent conversation. arXiv:2308.08155. https://arxiv.org/abs/2308.08155
Hong, S., Zheng, X., Chen, J., Cheng, Y., Wang, J., Zhang, C., Wang, Z., Yau, S. K. S., Lin, Z., Zhou, L., Ran, C., Xiao, L., and Wu, C. (2023). MetaGPT: Meta programming for a multi-agent collaborative framework. arXiv:2308.00352. https://arxiv.org/abs/2308.00352
Du, Y., Li, S., Torralba, A., Tenenbaum, J. B., and Mordatch, I. (2023). Improving factuality and reasoning in language models through multiagent debate. arXiv:2305.14325. https://arxiv.org/abs/2305.14325
Soma, K., Bouteiller, Y., Hamann, H., and Beltrame, G. (2024). The hive mind is a single reinforcement learning agent. arXiv:2410.17517 (preprint, revised through 2026). https://arxiv.org/abs/2410.17517
Huot, F., Kaisers, M., and Lapata, M. (2026). When is routing meaningful? Diversity and robustness in language model societies. arXiv:2607.09197. https://arxiv.org/abs/2607.09197
Cao, X., Srinivasan, S., and Bakker, M. A. (2026). Do modules stay in their lane? Role drift in compound LLM systems. arXiv:2607.21627. https://arxiv.org/abs/2607.21627
Raj, H., Gupta, V., Mahmoud, A., Dumitru, R.-G., Yi, D., Sabharwal, A., and He, Y. (2026). Model or harness? An interaction-centric taxonomy for localizing agent failures. arXiv:2607.28802. https://arxiv.org/abs/2607.28802
Tranchero, M., Brenninkmeijer, C.-F., Murugan, A., and Nagaraj, A. (2026). Simulating strategic interactions with AI agents. Strategic Management Journal, 47(11), 2932 to 2958. https://doi.org/10.1002/smj.70112

# Multi-Agent LLM Systems {#sec-multi-agent-llm} A single large language model, no matter how capable, suffers a fundamental limitation: it produces one stream of reasoning from one implicit perspective. When a model writes code and then reviews it in the same forward pass, the review inherits all the biases and blind spots of the generation step. Multi-agent systems address this by distributing cognitive labor across several model instances, each constrained to a role, a perspective, or a stage of a pipeline. The resulting architecture enables specialization, parallelism, adversarial cross-checking, and iterative refinement that a monolithic model cannot replicate. ## Why Multiple Agents ### Division of Labor and Specialization Human organizations achieve reliability and quality through role differentiation. A software team separates product requirements, architecture, implementation, code review, and testing because each task demands different expertise and, critically, because the person writing code is ill-suited to evaluate whether requirements were met. The same logic applies to LLM systems. An agent whose system prompt constrains it to the role of security auditor will surface different vulnerabilities than the agent that wrote the code, even if both use the same underlying model weights. Specialization in multi-agent LLM systems is implemented by fixing a role-specific system prompt for each agent. The system prompt encodes constraints ("you only flag security issues, not style"), domain vocabulary ("assume OWASP Top 10 as your framework"), and output format ("respond with a numbered list of CVEs"). Because transformer models are highly sensitive to context, a well-crafted system prompt reliably shifts the model's distribution toward the desired behavior. ### Parallelism Tasks with independent subtasks are natural candidates for parallel agent execution. Generating multiple candidate solutions, searching several knowledge sources simultaneously, or producing first drafts of several document sections in parallel all benefit from concurrent agent invocation. The total wall-clock time for $N$ independent tasks with expected duration $\mu$ becomes $\mu$ rather than $N\mu$ when agents run in parallel, at the cost of $N$ times the token budget. ### Adversarial Checking and Debate Perhaps the most important motivation for multi-agent systems is adversarial verification. When one agent produces an answer and a second agent is explicitly prompted to find flaws, the second agent's critique is statistically independent of the first agent's generation, conditioned only on the text content of the answer. This independence breaks the autocorrelation that plagues single-model self-critique. Define the probability that a single agent makes an undetected error as $\epsilon$. If a second independent agent reviews the output and catches errors with probability $p_{\text{detect}}$, the residual error rate falls to $\epsilon(1 - p_{\text{detect}})$. With $k$ independent reviewers each catching errors independently, the residual error rate is $\epsilon \prod_{i=1}^{k}(1-p_{\text{detect},i})$. For $p_{\text{detect}} = 0.7$ and $k = 2$, this reduces $\epsilon$ by a factor of $0.09$, nearly an order of magnitude. ## ChatDev: Simulating a Software Company Qian et al. (2023) introduced ChatDev, a system that instantiates a virtual software company populated entirely by LLM agents. The company comprises roles including CEO, Chief Product Officer, Chief Technology Officer, Programmer, Code Reviewer, and Tester. Each agent is a separate LLM instance with a fixed role-defining system prompt. ### The Inception Prompting Technique The core challenge in multi-agent chat is maintaining role consistency while injecting task-relevant context. A naive approach would alter the system prompt for each task, but this creates prompt-injection risks and inconsistency. ChatDev instead uses what the authors call "Inception" prompting: the system prompt is frozen and defines role identity, while the task description and inter-agent messages are injected into the conversation history as user turns. The agent thus "learns" about the current task through the conversation, not through modification of its identity. Formally, let $s_r$ be the fixed system prompt for role $r$. The conversation history at step $t$ is $H_t = \{(u_1, a_1), \ldots, (u_t, a_t)\}$ where $u_i$ is a user-role message and $a_i$ is an assistant-role response. Each agent generates: $$a_{t+1} = \text{LLM}(s_r, H_t, u_{t+1})$$ The role identity in $s_r$ remains fixed throughout the project, while the accumulating $H_t$ carries the full project context. This prevents role collapse while enabling contextual adaptation. ### Structured Communication Protocol Agents in ChatDev communicate through a structured phase-based protocol. The software development lifecycle is divided into phases: Designing (CEO and CPO produce requirements), Coding (CTO and Programmer implement), Code Review (Programmer and Reviewer iterate), and Testing (Programmer and Tester iterate on identified bugs). Each phase is a separate multi-turn dialogue between two designated agents. The output of each phase becomes input to the next, creating a waterfall-like pipeline with LLM-mediated handoffs. This phase structure prevents the combinatorial explosion of all-to-all communication and enforces a directed acyclic graph of information flow, reducing the risk of circular dependencies and echo chambers. ## AutoGen: Flexible Conversational Agents Wu et al. (2023) introduced AutoGen, a framework that generalizes multi-agent collaboration to arbitrary conversation topologies. Rather than prescribing a fixed organizational structure like ChatDev, AutoGen provides composable primitives that developers combine to build application-specific agent networks. ### Core Abstractions The fundamental unit in AutoGen is the `ConversableAgent`: an entity that can send messages, receive messages, and optionally execute code or call tools. Two specializations are particularly important. The `AssistantAgent` is an LLM-backed agent configured to write code, answer questions, and produce structured outputs. The `UserProxyAgent` acts as a proxy for human oversight, executing code in a sandbox, relaying results back to the assistant, and optionally soliciting human input at configurable checkpoints. The `UserProxyAgent` exposes a `human_input_mode` parameter with three values: `ALWAYS` (prompt a human on every turn), `NEVER` (fully autonomous), and `TERMINATE` (prompt only when the agent signals completion). This configurable human-in-the-loop mechanism allows the same agent architecture to be deployed across a spectrum from fully supervised to fully autonomous operation. ### Conversation Topologies AutoGen supports several topologies beyond the simple two-agent dialogue. In group chats, a `GroupChatManager` coordinates multiple agents by selecting the next speaker according to a policy (round-robin, LLM-selected, or custom). Sequential chats chain independent two-agent conversations, passing a summary of each conversation as context to the next. Nested chats allow one agent to spawn a sub-conversation with other agents as a subroutine, enabling hierarchical task decomposition. The group chat manager's speaker selection policy can itself be an LLM prompt, making the coordination logic adaptive. Given the current conversation history $H$ and the set of available agents $\mathcal{A}$, the manager solves: $$a^* = \arg\max_{a \in \mathcal{A}} \text{LLM}(\text{``Given the conversation, which agent should speak next?''}, H)$$ This meta-level reasoning enables dynamic role assignment that responds to the evolving state of the task. ## MetaGPT: Standard Operating Procedures as Agent Programs Hong et al. (2023) observed that the primary failure mode of unconstrained multi-agent systems is information loss at handoff boundaries. When agents communicate in natural language, structured information degrades: an agent that produces a precise entity-relationship diagram in its reasoning may transmit only a prose summary to the next agent, losing the formal structure. MetaGPT addresses this by encoding software engineering Standard Operating Procedures (SOPs) into the agent workflow and requiring structured, typed outputs at each stage. ### Role-Structured Output Schema Each MetaGPT agent role produces a document defined by a schema rather than free text. The Product Manager produces a Product Requirements Document (PRD) with sections for goals, user stories, competitive analysis, and success metrics. The Architect produces a system design document with class diagrams, sequence diagrams, and file structure. The Engineer produces implementation code. The QA Engineer produces a test suite. These structured outputs are stored in a shared message pool. ### Publish-Subscribe Communication The shared message pool implements a publish-subscribe pattern. Each agent publishes its structured output to the pool tagged with its role and document type. Downstream agents subscribe to the document types they require: the Architect subscribes to PRDs, the Engineer subscribes to design documents, the QA Engineer subscribes to both design documents and code. This explicit subscription graph replaces the implicit assumption that all agents have access to all information, reducing context length and focusing each agent's attention on relevant inputs. Let $M_r$ be the set of message types produced by role $r$, and $S_r$ be the set of message types to which role $r$ subscribes. The information available to agent $r$ at step $t$ is: $$I_r^{(t)} = \bigcup_{r' : M_{r'} \cap S_r \neq \emptyset} \{m \in \text{Pool}_t : \text{type}(m) \in S_r\}$$ This selective information access prevents context bloat while preserving the information dependency graph required for coherent collaboration. Hong et al. (2023) report that MetaGPT achieves 85.9% pass@1 on HumanEval when used for code generation tasks, attributed to the structured handoffs that preserve semantic content across role boundaries. ## Multi-Agent Debate Du et al. (2023) proposed a multi-agent debate protocol for improving factuality and reasoning. The protocol proceeds in rounds: in round $t=0$, each of $N$ agents independently generates an answer to a question. In subsequent rounds $t = 1, \ldots, T$, each agent reads all agents' answers from round $t-1$ and produces a revised answer. After $T$ rounds, the final answers are aggregated by majority vote or by a designated judge agent. ### Why Debate Improves Reasoning The information-theoretic motivation is that the initial answers form a sample from the LLM's output distribution. Different random seeds, sampling temperatures, or minor prompt variations produce diverse initial answers. When an agent reads answers that differ from its own, it is exposed to reasoning paths it did not generate, which can trigger recognition of its own errors. The debate process implements a form of iterated best-response: $$a_i^{(t)} = \text{LLM}\!\left(s_i,\; q,\; \{a_j^{(t-1)}\}_{j=1}^{N}\right)$$ where $s_i$ is agent $i$'s system prompt, $q$ is the question, and $\{a_j^{(t-1)}\}$ is the set of all agents' previous answers. Over rounds, agents converge toward answers consistent with the majority reasoning chain, while agents with outlier positions must either articulate compelling arguments or update their position. ### Empirical Results Du et al. (2023) evaluate multi-agent debate on biography generation (factuality measured against Wikipedia), the MATH benchmark, and chess move prediction. With $N = 3$ agents and $T = 2$ debate rounds, factuality on biography generation improves by approximately 11 percentage points over a single-agent baseline. On MATH, accuracy improves from 51.3% to 60.4%. The improvements are largest on questions where agents initially disagree, confirming that debate is most valuable when the initial answer distribution is multimodal. ### Aggregation Strategies Simple majority voting over final-round answers is a strong baseline: if the probability of any single agent producing the correct answer is $p$ and agents are independent, the probability that a majority of $N$ agents is correct is $\sum_{k=\lceil N/2 \rceil}^{N} \binom{N}{k} p^k (1-p)^{N-k}$, which exceeds $p$ whenever $p > 0.5$. A judge agent that reads all final answers and selects the best-reasoned one can outperform majority vote when $p < 0.5$ for the majority of agents, since the judge can identify quality signals beyond mere agreement. ### Why Voting Converges: The Hive-Mind Equivalence {#sec-hive-mind} Section 5.1 to 5.3 describe *what* debate-and-vote does; a striking theoretical result explains *why* it should converge on the best answer at all, even though no individual agent is ever told which answer is correct. Soma et al. (2024) study an unrelated-looking system, honey bee swarms choosing a new nest site, and show that its imitation dynamics are exactly a reinforcement-learning algorithm. The mapping onto multi-agent debate is direct once stated: a candidate final answer plays the role of a *nest site* (an action $a$ among $n$ options), an agent's current answer is its *type*, and "broadcasting a nest site more enthusiastically the better it seems" is exactly what a debating agent does when it argues for its own answer with more or less conviction. **The weighted voter model.** Let $\pi = (\pi_1, \dots, \pi_n)$ be the population vector, the fraction of the $N$ agents currently holding each of the $n$ candidate answers, $\sum_a \pi_a = 1$. An agent holding answer $a$ draws a noisy quality estimate $r_a \sim r(a, \pi) \in [0,1]$ (in the debate setting: how convincing its own reasoning for $a$ seems on reflection) and broadcasts $a$ at a rate proportional to $r_a$. An agent that encounters a neighbor holding answer $b$ switches to $b$ with probability proportional to $b$'s broadcast strength, i.e. proportional to $\mathbb{E}[r_b]$ weighted by how many neighbors hold $b$. This is a purely *imitative* rule: no agent ever compares options directly, it only ever reacts to what it overhears, exactly as a debating agent only ever reads other agents' stated answers, never a ground truth. **The single-agent bandit view.** Soma et al. define the update rule an *equivalent single reinforcement-learning agent* would use, $\alpha$-**Maynard-Cross Learning (MCL)**: draw one action $k$, observe its reward sample $r_k$, and update the policy $\pi$ by $$ \pi_a \;\leftarrow\; \pi_a + \alpha\,\frac{r_k}{v^\pi} \begin{cases} 1 - \pi_a & a = k \\ -\,\pi_a & a \ne k, \end{cases} \qquad v^\pi = \sum_b \pi_b\, \mathbb{E}[r_b], $$ where $v^\pi$ is the current policy's expected value and $\alpha = 1/N$ plays the role of a learning rate. Averaged over the randomness in $k$ and $r_k$, this update has expectation $$ \mathbb{E}[d\pi_a] \;=\; \frac{\pi_a}{v^\pi}\big(q_a^\pi - v^\pi\big), \qquad q_a^\pi = \mathbb{E}[r_a], $$ {#eq-498-drift} which is the **replicator dynamic** of evolutionary game theory: an option's share of the population grows exactly in proportion to how much its quality $q_a^\pi$ exceeds the population's current average $v^\pi$, and shrinks otherwise. This is intuitive for debate: an answer's support grows only while it is doing better than the group's current average conviction. **Proposition 2 (Soma et al. 2024).** A population of $N$ agents independently following the local, purely imitative weighted-voter rule is, at the population level, *exactly* a single reinforcement-learning agent executing $\alpha$-MCL with $\alpha = 1/N$, where each agent supplies one parallel action sample $a^{(i)} \sim \pi$ tested against its own private copy of the reward distribution. In other words: **the swarm is not merely analogous to a bandit learner, it is one, with the population size setting the learning rate.** The following simulation makes the equivalence concrete: it runs the $N$-agent weighted-voter swarm and the single-agent $\alpha$-MCL bandit side by side on the same $n$-option quality landscape, and checks that their policy trajectories coincide up to Monte Carlo noise. ```{python} #| label: code-498-hive-mind #| code-fold: false import numpy as np rng = np.random.default_rng(0) def sample_reward(true_quality, rng): """A noisy per-draw quality estimate r_a in [0, 1], mean true_quality[a].""" return np.clip(rng.normal(true_quality, 0.05), 0.0, 1.0) def swarm_async_step(pi, true_quality, N, rng): """One elementary imitation event, implementing Definition 3's switching rule directly: a single focal agent, currently of type a, tunes into the population's total broadcast and re-settles on type b with probability proportional to b's population share times b's broadcast strength (its quality estimate), pi_b * r_b / sum_l(pi_l * r_l) -- a full resample, not a pairwise duel, since the focal agent hears *every* type's broadcast at once. This single-event timescale is what corresponds to exactly one alpha-MCL update below, alpha = 1/N being the size of a one-agent shift. """ a = rng.choice(len(pi), p=pi) # focal agent's current type r = sample_reward(true_quality, rng) # a fresh quality draw per type weight = pi * r b = rng.choice(len(pi), p=weight / weight.sum()) # type it resettles on if a != b: pi = pi.copy() pi[a] -= 1.0 / N pi[b] += 1.0 / N pi = np.clip(pi, 0.0, None) # guard against float underflow below zero pi /= pi.sum() return pi def mcl_step(pi, true_quality, alpha, rng): """One alpha-MCL update: a single RL agent samples one action and updates pi.""" k = rng.choice(len(pi), p=pi) r_k = sample_reward(true_quality[k], rng) v_pi = float(np.dot(pi, true_quality)) # E[r_b] = true_quality[b] in expectation delta = np.where(np.arange(len(pi)) == k, 1 - pi, -pi) return np.clip(pi + alpha * (r_k / v_pi) * delta, 0.0, None) n_options = 4 true_quality = np.array([0.30, 0.55, 0.40, 0.70]) # option 3 (index 3) is best N = 200 # swarm size == 1/alpha for the equivalent single agent alpha = 1.0 / N rounds = 3000 # elementary events; ~O(N) events are needed for the swarm to move n_replicates = 150 # average many independent runs to isolate the *expected* update best = int(true_quality.argmax()) swarm_traj = np.zeros(rounds) mcl_traj = np.zeros(rounds) for _ in range(n_replicates): pi_s = np.full(n_options, 1.0 / n_options) pi_m = np.full(n_options, 1.0 / n_options) for t in range(rounds): pi_s = swarm_async_step(pi_s, true_quality, N, rng) pi_m = mcl_step(pi_m, true_quality, alpha, rng) pi_m = pi_m / pi_m.sum() swarm_traj[t] += pi_s[best] mcl_traj[t] += pi_m[best] swarm_traj /= n_replicates mcl_traj /= n_replicates print(f"true qualities: {true_quality}, best option = {best}, replicates = {n_replicates}") print(f"{'round':>6}{'E[swarm share of best]':>24}{'E[MCL share of best]':>22}") for t in [0, 99, 499, 999, 1999, rounds - 1]: print(f"{t + 1:>6}{swarm_traj[t]:>24.3f}{mcl_traj[t]:>22.3f}") print(f"\nmax gap between the two mean trajectories: {np.abs(swarm_traj - mcl_traj).max():.3f}") ``` Averaged over many replicate runs, the two processes' *mean* trajectories track each other closely at every round, which is exactly what Proposition 2 predicts: it is a statement about the expected update, the drift of Equation @eq-498-drift, not about any single finite-$N$ sample path. A single realization of the discrete swarm, by contrast, is a literal absorbing Markov chain: a finite voter model *must* eventually reach unanimous consensus on one option (this is the classical voter-model fixation result), so one run of the swarm typically lands on a hard $[0,\dots,1,\dots,0]$ well before the smoother single-agent MCL policy gets that close, a real difference in variance and absorption behavior, not a bug in the equivalence. Averaging over replicates is what recovers the shared mean-field dynamics both processes obey. The practical reading for multi-agent debate carries over directly: **debate-and-vote is a bandit algorithm running on the space of candidate answers**, and it converges on the best answer precisely because, and only because, each agent's broadcast strength (how convincingly it argues) tracks that answer's true quality. This is also a precise diagnosis of the echo-chamber failure mode of Section 6.1: if every agent's quality estimate $r_a$ is drawn from the same biased source (identical model, identical prompt, correlated errors), the "bandit" is not exploring $n$ independent noisy estimates at all, it is running $N$ correlated copies of one estimate, and the replicator dynamic above amplifies whatever that shared estimate says, right or wrong, rather than discovering the true best answer. ## Failure Modes ### Echo Chambers Multi-agent debate assumes diversity of initial answers. If agents share the same model, the same temperature, and receive the same prompt, their initial answers are nearly identical, and the debate degrades to a single-agent interaction with expensive overhead. Even with diverse agents, social pressure dynamics in the debate prompt can cause minority-correct agents to capitulate to a confident but wrong majority. Mitigation strategies include enforcing diverse system prompts, using distinct model versions, and requiring agents to explicitly state disagreements rather than silently updating. The same pull toward the majority appears when LLM agents are used as simulated decision makers rather than problem solvers. Tranchero, Brenninkmeijer, Murugan, and Nagaraj (2026) ran groups of GPT-4 agents through a sequential exploration game in which one moderately valuable option is visible from the start. Growing the group from 5 to 30 agents did not produce more exploration; the agents kept piling onto the visible option and justified the choice by how many others had already made it, sometimes inferring that the crowd knew something they did not. Making the agents split rewards when they chose the same option removed the herd entirely. For multi-agent systems the lesson is that visibility of earlier agents' choices is itself a design parameter: sequential, observable choices invite conformity, and incentives that penalize duplication counteract it. @sec-llm-simulated-strategic-interaction works through the game, its economics, and a reusable simulation engine. ### Role Collapse Agents with long conversation histories gradually lose fidelity to their assigned roles as the accumulating context dilutes the signal from the system prompt. A Programmer agent may begin offering product requirements opinions after dozens of turns of mixed-domain conversation. Role collapse can be detected by prompting the agent to state its role and responsibilities, and mitigated by periodic system prompt reinforcement or by resetting the conversation history to only the most relevant recent exchanges. ### Context Length Explosion In a group chat with $N$ agents exchanging $k$ messages each over $T$ rounds, the total context length grows as $O(NkT \cdot \bar{l})$ where $\bar{l}$ is the average message length. For $N = 5$, $k = 10$, $T = 5$, and $\bar{l} = 500$ tokens, the context already exceeds 125,000 tokens, at or beyond the limits of current models and expensive to process. Practical systems must implement context summarization, selective retention, or the publish-subscribe selective visibility pattern from MetaGPT to keep individual agent contexts manageable. ### Coordination Overhead Coordination messages (routing, acknowledgment, role assignment, format negotiation) consume tokens without advancing the task. In systems where the coordination protocol is itself LLM-generated (as in AutoGen's LLM-based speaker selection), coordination can consume a non-trivial fraction of total compute. Fixed-topology systems like ChatDev avoid this by hardcoding the coordination graph, trading flexibility for efficiency. ## When Is Routing Meaningful? Diversity and Stability as Preconditions {#sec-routing-meaningful} The systems of this chapter all assume that assembling a pool of agents and routing each query to the most suitable one is worth the coordination cost of @sec-multi-agent-llm. Huot et al. [@huot2026routing] ask a sharper question: when is such routing genuinely *meaningful*, as opposed to merely accurate? Their answer is that raw accuracy on clean queries is a treacherous metric, because a router can post a high hit rate while doing nothing that a single fixed model could not do just as well. Meaningful routing, they argue, requires two properties that accuracy alone never certifies. The first is behavioral *differentiation*: the agents in the society must actually respond differently, since if they answer identically then routing is vacuous and there is nothing to route between. The second is *stability*: surface-form variants of the same query, a paraphrase that preserves meaning, should route to the same agent, otherwise the assignment is arbitrary rather than a reflection of any real specialization. To quantify the first property, the authors adapt Hierarchic Social Entropy (HSE), a diversity measure originally from the study of behavioral heterogeneity in robot collectives, to a society of language models: an agent's "behavior" is its output profile across a battery of probe queries, and HSE integrates over a range of distance thresholds to summarize how many behaviorally distinct voices the pool actually contains at every granularity. Their central empirical finding is that this diversity exhibits strong diminishing returns. Most of the behavioral variety present in a large pool is already recoverable from a curated subset of fewer than ten agents, so the marginal agent past that point rarely widens the society's repertoire. This directly qualifies the naive "more agents is better" intuition: a society can be large and still behaviorally thin. For the second property they introduce a perturbation-based robustness metric that paraphrases each query and measures whether the router's assignment survives the rewording. Here the results are the most cautionary. A learned KNN router, which assigns each query to the nearest specialist in an embedding space, gains genuine accuracy on societies of true specialists, but its assignments *collapse* under paraphrase perturbation: the specific agent chosen flips readily even though the query's meaning is unchanged. A simple prompted router, one that asks a capable model which agent should handle the query, retains both its accuracy and its stability. The lesson is that clean-query accuracy can mask a meaningless router, because accuracy and meaningfulness can sharply diverge: two routers with nearly identical hit rates can differ entirely in whether their choices mean anything. The following simulation reproduces both phenomena on a toy society. It builds a pool of agents as behavior vectors drawn from a few behavioral archetypes (specialties), with several near-duplicate agents per archetype, exactly the redundancy the paper warns about. It then (1) traces an HSE-flavored diversity curve, the entropy of a threshold clustering of the society, as agents are added one at a time, and (2) trains a nearest-neighbor router that predicts *which agent* should answer, scoring its clean-query accuracy at the level of *specialty* (did it route to a competent agent?) and its stability at the level of *agent identity* (did a paraphrase change which agent it picked?). ```{python} #| label: code-498-routing-meaningfulness #| fig-cap: "HSE-style diversity of a growing agent society. The entropy of a threshold clustering rises quickly and then plateaus: most behavioral variety is recovered from fewer than ten agents, reproducing the strong diminishing returns reported by Huot et al." import numpy as np import matplotlib.pyplot as plt from sklearn.cluster import AgglomerativeClustering from sklearn.neighbors import KNeighborsClassifier rng = np.random.default_rng(7) # ---- A society of LLM agents as behavior vectors ---- # Each agent belongs to one of a few behavioral archetypes ("specialties"). # Several agents per specialty are near-duplicates: adding the sixth coding # specialist barely widens the society's behavioral repertoire. n_specialties = 4 agents_per_specialty = 6 dim = 8 specialty_centers = rng.normal(0.0, 3.0, size=(n_specialties, dim)) agent_vecs, agent_specialty = [], [] for s in range(n_specialties): for _ in range(agents_per_specialty): agent_vecs.append(specialty_centers[s] + rng.normal(0.0, 0.5, size=dim)) agent_specialty.append(s) agent_vecs = np.array(agent_vecs) agent_specialty = np.array(agent_specialty) n_agents = len(agent_vecs) # ---- (1) Diversity has strong diminishing returns (HSE-flavored) ---- def society_diversity(vecs): """Shannon entropy (bits) of a threshold clustering of the society: how many behaviorally distinct voices the pool contains. Agents that fall inside an existing cluster do not raise it, so redundancy is not counted as diversity.""" if len(vecs) < 2: return 0.0 labels = AgglomerativeClustering( n_clusters=None, distance_threshold=3.0, linkage="average" ).fit_predict(vecs) _, counts = np.unique(labels, return_counts=True) p = counts / counts.sum() return float(-(p * np.log2(p)).sum()) order = rng.permutation(n_agents) sizes = np.arange(1, n_agents + 1) div_curve = np.array([society_diversity(agent_vecs[order[:m]]) for m in sizes]) full = div_curve[-1] frac = div_curve / full reached_90 = int(sizes[np.argmax(frac >= 0.90)]) # ---- (2) A KNN router: accurate yet unstable ---- def make_queries(n, rng): s = rng.integers(0, n_specialties, size=n) return specialty_centers[s] + rng.normal(0.0, 0.8, size=(n, dim)), s def nearest_agent(X): d = ((X[:, None, :] - agent_vecs[None, :, :]) ** 2).sum(-1) return d.argmin(1) X_tr, _ = make_queries(400, rng) y_tr = nearest_agent(X_tr) # label = agent identity router = KNeighborsClassifier(n_neighbors=1).fit(X_tr, y_tr) X_te, s_te = make_queries(300, rng) clean_assign = router.predict(X_te) accuracy = float((agent_specialty[clean_assign] == s_te).mean()) # competent specialist? X_pert = X_te + rng.normal(0.0, 0.6, size=X_te.shape) # a meaning-preserving paraphrase pert_assign = router.predict(X_pert) stability = float((pert_assign == clean_assign).mean()) # same agent chosen? pert_accuracy = float((agent_specialty[pert_assign] == s_te).mean()) print(f"society size: {n_agents} agents across {n_specialties} specialties") print(f"full diversity: {full:.3f} bits; 90% of it reached by {reached_90} agents") print(f"routing accuracy on clean queries (correct specialty): {accuracy:.3f}") print(f"routing accuracy after paraphrase (correct specialty): {pert_accuracy:.3f}") print(f"assignment stability under paraphrase (same agent): {stability:.3f}") fig, ax = plt.subplots(figsize=(6, 3.4)) ax.plot(sizes, div_curve, marker="o", color="#3b6ea5") ax.axvline(reached_90, ls="--", color="grey", lw=1) ax.set_xlabel("agents in society") ax.set_ylabel("behavioral diversity (bits)") ax.set_title("Diminishing returns of society diversity") fig.tight_layout() plt.show() ``` The printed numbers tell the paper's story in miniature. The diversity curve saturates well before the full pool is assembled, so nearly all of the society's behavioral repertoire is captured by a handful of agents and the rest are redundant. Meanwhile the router remains highly accurate at the level that a benchmark would score, it almost always dispatches a query to a competent specialist, even after paraphrasing, yet its stability collapses: a semantically inert reword frequently changes *which* agent is chosen. Accuracy and meaningfulness have diverged, precisely the failure the paper isolates. This is the same pathology as the echo-chamber failure mode of Section 6.1 viewed from the routing side rather than the debate side, and it connects to the correlated-estimate diagnosis of @sec-hive-mind: a society of near-duplicate agents gives a router nothing stable to discriminate on, so its confident-looking assignments are, on inspection, arbitrary. The practical takeaway for anyone building the architectures of this chapter is to measure both properties before trusting a router: verify that the society is genuinely differentiated (a fat HSE curve past a few agents is a warning sign), and verify that assignments survive paraphrase, because a high-accuracy router that fails either test may be meaningful in name only. ## Role Drift: When Terminal Accuracy Hides a Broken Division of Labor {#sec-498-role-drift} @sec-routing-meaningful asks whether a router's choices mean anything. Cao et al. [@cao2026roledrift] ask the companion question one level down, about the modules themselves: once a compound pipeline is fine-tuned end to end with reinforcement learning on a terminal reward, do the modules still do the jobs they were assigned? End-to-end RL optimizes only the final output, so it never sees, and therefore never constrains, how labor is divided internally. The authors name the resulting failure **role drift**: a module preserves or even improves end-task performance while abandoning its assigned role through **role-violating shortcuts** that system-level evaluation cannot see. This is the trained-weights analogue of the role collapse of Section 6.2, and it is strictly worse to detect, because context dilution announces itself in the transcript whereas a shortcut learned by gradient descent looks, from outside the pipeline, like success. Two pipelines in the paper make the pathology concrete. In the first, a **decomposer** is supposed to split a question into sub-questions for a separate **solver**; after RL it instead plants the answer inside the sub-questions, so the solver is no longer solving anything. In the second, a **reader** meant to answer strictly from retrieved passages learns to fall back on parametric memory, quietly voiding the grounding guarantee that motivated retrieval in the first place. In both cases terminal accuracy goes up. The system looks like it learned to decompose, or to read; it learned neither. **Formalizing the role effect.** Write a compound system as modules $m = 1, \dots, M$, where module $m$ carries a role prompt $r_m$ and samples from $\pi_m(\cdot \mid r_m, h)$ given the running context $h$. The role prompt is the only thing distinguishing a module from a generic language model, so the natural handle on "is the role still in force?" is the shift the prompt induces on the module's next-token predictions, measured against a **neutral prompt** $\varnothing$ that carries no role at all: $$ \delta_m(h; \theta) \;=\; \log \pi_m^{\theta}(\cdot \mid r_m, h) \;-\; \log \pi_m^{\theta}(\cdot \mid \varnothing, h). $$ This log-ratio vector is a proxy for the role's intended effect: it is what the words "split this question into sub-questions" actually buy in probability mass. **Role Anchor** regularizes end-to-end training so that this quantity is preserved relative to its value $\delta_m(h; \theta_0)$ at initialization, before any drift has occurred: $$ \max_{\theta}\; \mathbb{E}\big[R(\text{terminal output})\big] \;-\; \lambda \sum_{m=1}^{M} \underbrace{\mathbb{E}_h\, D\big(\delta_m(h;\theta),\, \delta_m(h;\theta_0)\big)}_{A_m(\theta),\ \text{the anchor penalty}}, $$ {#eq-498-role-anchor} with $D$ a divergence between the current and reference role effects. Note carefully what @eq-498-role-anchor does *not* do: it never pins the module's outputs to their initial values, which would simply prevent learning. It pins only the *difference* the role prompt makes, leaving the module free to improve at the job it was given. Cao et al. report gradient analysis consistent with this reading: the regularizer reduces alignment with the role-drift direction rather than uniformly suppressing the learning signal. The strength $\lambda$ then sweeps a frontier between terminal accuracy and role fidelity, and the paper is explicit that the accuracy cost is real and varies by pipeline and anchor strength. **The headline number.** On the decomposer pipeline, holding the module to its role erases **86% of the apparent RL gain**. Almost the entire improvement that end-to-end training appeared to deliver was the decomposer smuggling the answer past its own role, not the pipeline getting better at decomposition. Terminal accuracy, in other words, can overstate what a compound system has genuinely learned by nearly an order of magnitude. The simulation below reproduces this phenomenon end to end on a two-module toy pipeline. A decomposer chooses among three moves (split the question, restate it, state the answer) with probabilities given by a softmax under its role prompt; the mass it places on "split" scales a legitimate evidence channel that the solver can use, and the mass it places on "answer" scales a role-violating channel that leaks the decomposer's own parametric guess directly to the solver. Training is a reward-only hill climb that observes nothing but terminal accuracy, exactly the information an end-to-end RL run has. Role fidelity is $\exp(-A(\theta))$ with $A$ the mean squared deviation of the current role effect from its reference, so $1$ means the role prompt still does precisely what it did at initialization and $0$ means its effect has been erased. ```{python} #| label: fig-498-role-drift #| fig-cap: "Role Anchor traces a frontier between terminal accuracy and role fidelity on a simulated decomposer-solver pipeline. Unregularized end-to-end training (lambda = 0) buys accuracy by collapsing role fidelity, because the decomposer plants the answer instead of decomposing; raising lambda restores fidelity and closes the shortcut channel, which gives back most of the apparent accuracy gain. The frontier is not monotone in lambda, so where along it one reads off the genuine gain is a stated choice rather than a fact of the data." #| code-fold: false import numpy as np import matplotlib.pyplot as plt rng = np.random.default_rng(11) K = 6 # answer options the solver chooses among V = 3 # decomposer moves: split, restate, plant the answer SPLIT, RESTATE, PLANT = 0, 1, 2 mu_split = 2.6 # a genuine decomposition is informative, not decisive mu_plant = 6.0 # a planted answer is a far louder signal for the solver p_dec_correct = 0.88 # the decomposer's own parametric answer: good, not perfect def make_batch(m, rng): """One batch of questions. S is the evidence a faithful decomposition passes on; A is the role-violating channel in which the decomposer writes its own answer into the sub-questions instead of splitting anything.""" y = rng.integers(0, K, size=m) eye = np.eye(K) dec = np.where(rng.random(m) < p_dec_correct, y, rng.integers(0, K, size=m)) return {"y": y, "S": mu_split * eye[y] + rng.normal(0.0, 1.0, size=(m, K)), "A": mu_plant * eye[dec] + rng.normal(0.0, 1.0, size=(m, K)), "noise": rng.normal(0.0, 1.0, size=(m, K))} train_batch, eval_batch = make_batch(3000, rng), make_batch(6000, rng) def log_softmax(z): z = z - z.max() return z - np.log(np.exp(z).sum()) def role_effect(theta): """delta = log pi(. | role prompt, h) - log pi(. | neutral prompt, h).""" w, a = theta[:V], theta[V:] return log_softmax(w + a) - log_softmax(w) def gains(theta): """Move distribution under the role prompt: how much of each channel is used.""" p = np.exp(log_softmax(theta[:V] + theta[V:])) return p[SPLIT], p[PLANT] def accuracy(theta, batch): g_split, g_plant = gains(theta) M = g_split * batch["S"] + g_plant * batch["A"] + batch["noise"] return float((M.argmax(1) == batch["y"]).mean()) theta0 = np.array([0.0, 0.0, 0.0, 2.0, 0.5, -2.0]) # w = 0; the role prompt favors splitting delta_ref = role_effect(theta0) def anchor(theta): d = role_effect(theta) - delta_ref return float((d * d).mean()) def role_fidelity(theta): return float(np.exp(-anchor(theta))) def train(lam, steps=500, sigma=0.30, seed=0): """Maximize terminal reward plus the Role Anchor penalty by a (1+1) hill climb. The optimizer observes end-task accuracy only, as end-to-end RL does.""" r = np.random.default_rng(seed) th = theta0.copy() J = accuracy(th, train_batch) - lam * anchor(th) for _ in range(steps): cand = th + sigma * r.normal(size=th.shape) Jc = accuracy(cand, train_batch) - lam * anchor(cand) if Jc > J: th, J = cand, Jc return th lams = [0.0, 0.02, 0.05, 0.1, 0.25, 0.5, 1.0, 2.0, 5.0] trained = [train(lam) for lam in lams] accs = np.array([accuracy(th, eval_batch) for th in trained]) fids = np.array([role_fidelity(th) for th in trained]) leaks = np.array([gains(th)[1] for th in trained]) acc_init, fid_init = accuracy(theta0, eval_batch), role_fidelity(theta0) apparent = accs[0] - acc_init # what end-to-end RL appears to deliver # The shortcut share is only defined relative to a stated standard of role # enforcement, so fix one explicitly: FID_TARGET is the role fidelity a run must # reach before we are willing to call its remaining gain genuine. The headline # uses the *cheapest* anchor that clears the bar (smallest lambda), which is the # reading most favorable to the pipeline; stricter anchors give larger shares. FID_TARGET = 0.95 restored = [i for i, f in enumerate(fids) if f >= FID_TARGET] head = restored[0] # smallest lambda that restores the role genuine = accs[head] - acc_init # what survives when the role is enforced shares = np.array([1.0 - (accs[i] - acc_init) / apparent for i in restored]) shortcut_share = shares[0] print(f"{'lambda':>8}{'accuracy':>11}{'role fidelity':>15}" f"{'planted-answer share':>22}{'shortcut share':>16}") print(f"{'init':>8}{acc_init:>11.3f}{fid_init:>15.3f}{gains(theta0)[1]:>22.3f}{'':>16}") for lam, a, f, g in zip(lams, accs, fids, leaks): print(f"{lam:>8.2f}{a:>11.3f}{f:>15.3f}{g:>22.3f}" f"{1.0 - (a - acc_init) / apparent:>16.3f}") print(f"\napparent RL gain (lambda = 0): {apparent:+.3f}") print(f"role restored (fidelity >= {FID_TARGET:.2f}) at lambda = {lams[head]:g}") print(f"genuine gain at that lambda: {genuine:+.3f}") print(f"headline shortcut share: {shortcut_share:.1%}") print(f"shortcut share across all role-restoring lambdas: " f"{shares.min():.1%} to {shares.max():.1%}") fig, ax = plt.subplots(figsize=(6.2, 3.8)) ax.plot(fids, accs, "-o", color="#3b6ea5") for lam, f, a in zip(lams, fids, accs): ax.annotate(f"$\\lambda$={lam:g}", (f, a), textcoords="offset points", xytext=(6, -10), fontsize=8, color="#444444") ax.axhline(acc_init, ls=":", color="grey", lw=1) ax.annotate("untrained pipeline", (0.45, acc_init), textcoords="offset points", xytext=(0, 5), fontsize=8, color="grey") ax.set_xlabel("role fidelity $\\exp(-A(\\theta))$") ax.set_ylabel("terminal accuracy") ax.set_title("Role Anchor traces an accuracy vs role fidelity frontier") fig.tight_layout() plt.show() ``` The table reads as an indictment of terminal accuracy. Unregularized training raises end-task accuracy by about twenty-two points, from 0.673 to 0.894, which any benchmark would score as a large win, while role fidelity falls to zero at three decimals and the share of the decomposer's output budget spent planting the answer climbs from 1.5% to 98.5%. The pipeline did not learn to decompose; it learned to stop decomposing. Turning up $\lambda$ walks the frontier back: by $\lambda = 0.25$ role fidelity is 0.983 and the planted-answer channel is nearly shut again at 3.3%, at the cost of most of the headline gain. What remains, about six points of accuracy (0.673 to 0.735) earned by using the legitimate channel more effectively, is the part that was real. How much of the gain was shortcut is not a single number, and the code is deliberate about saying so. It calls the role restored once fidelity clears an explicitly stated threshold of 0.95, and it takes the headline at the *cheapest* anchor that clears it, $\lambda = 0.25$, since that is the reading most favorable to the pipeline: a shortcut share of **72.0%**. Weaker anchors do not qualify at all ($\lambda = 0.10$ reaches only 0.933 fidelity), and stricter ones charge the pipeline more, up to 88.5% at $\lambda = 5$, so across every setting that genuinely restores the role the shortcut share spans **72.0% to 88.5%**. That spread is not even monotone in $\lambda$ (accuracy wobbles between $\lambda = 0.5$ and $\lambda = 2$ before dropping again at $\lambda = 5$), which is precisely why quoting one endpoint would be a choice dressed up as a measurement. The 86% that Cao et al. report for their decomposer pipeline falls inside this band, but that is a remark about plausibility and nothing more: a toy simulation with hand-chosen channel strengths cannot corroborate a number measured on a real pipeline, and a coincidence of digits would be the weakest possible evidence if it did. What the simulation does reproduce, at every anchor strength in the sweep, is the qualitative finding, that the large majority of the apparent improvement was a role violation wearing the costume of learning. The evaluation lesson generalizes past this one regularizer, and it is the lesson to carry out of this chapter. A compound system's end-task score is a measurement of the *system*, and it is silent about whether the architecture you designed is the architecture that is running. If a decomposer can pass the answer downstream, a debate agent can converge by capitulation rather than evidence (Section 6.1), and a specialist can be routed to for reasons unrelated to its specialty (@sec-routing-meaningful), then in every case the number that looked like evidence of coordination was compatible with coordination having quietly disappeared. **Report per-module role fidelity alongside end-task accuracy**, whether via the anchor divergence of @eq-498-role-anchor, an ablation that severs a module's shortcut channel, or a counterfactual that swaps in a neutral prompt and measures what changes. Without such a per-module measurement you are not evaluating a multi-agent system at all; you are evaluating a black box that happens to be wired out of agents, and you have no way to tell learning from shortcut. ## Implementation: Two-Agent Debate in Python The following implementation demonstrates the multi-agent debate protocol with two agents alternating between answer generation and critique, converging on a consensus answer. The `MockLLM` class replaces actual model calls with deterministic responses to keep the demo CPU-runnable without API keys or GPU resources. ```python from __future__ import annotations import textwrap from dataclasses import dataclass, field from typing import Callable @dataclass class Message: role: str content: str @dataclass class Agent: name: str system_prompt: str llm: Callable[[list[Message]], str] history: list[Message] = field(default_factory=list) def respond(self, user_message: str) -> str: self.history.append(Message(role="user", content=user_message)) response = self.llm([Message(role="system", content=self.system_prompt)] + self.history) self.history.append(Message(role="assistant", content=response)) return response def reset(self) -> None: self.history = [] def make_mock_llm(responses: list[str]) -> Callable[[list[Message]], str]: """Return an LLM stub that cycles through a fixed list of responses.""" state = {"idx": 0} def llm(messages: list[Message]) -> str: response = responses[state["idx"] % len(responses)] state["idx"] += 1 return response return llm def debate(question: str, agent_a: Agent, agent_b: Agent, rounds: int = 2) -> str: """ Run a two-agent debate: Round 0: both agents independently answer the question. Rounds 1..T: each agent reads the other's previous answer and revises. Final: agent_a proposes consensus; agent_b accepts or refines. Returns the consensus answer string. """ agent_a.reset() agent_b.reset() print(f"Question: {question}\n{'='*60}") a_answer = agent_a.respond(f"Answer the following question:\n{question}") b_answer = agent_b.respond(f"Answer the following question:\n{question}") print(f"[Round 0] Agent A: {a_answer}") print(f"[Round 0] Agent B: {b_answer}\n") for r in range(1, rounds + 1): critique_prompt_a = ( f"Your previous answer was:\n{a_answer}\n\n" f"Agent B answered:\n{b_answer}\n\n" "Identify any errors or improvements. Provide a revised answer." ) critique_prompt_b = ( f"Your previous answer was:\n{b_answer}\n\n" f"Agent A answered:\n{a_answer}\n\n" "Identify any errors or improvements. Provide a revised answer." ) a_answer = agent_a.respond(critique_prompt_a) b_answer = agent_b.respond(critique_prompt_b) print(f"[Round {r}] Agent A revised: {a_answer}") print(f"[Round {r}] Agent B revised: {b_answer}\n") consensus_prompt = ( f"Based on the debate, propose a single consensus answer to:\n{question}\n" f"Your final position: {a_answer}\n" f"Agent B's final position: {b_answer}" ) consensus = agent_a.respond(consensus_prompt) print(f"[Consensus] {consensus}") return consensus agent_a_responses = [ "The capital of Australia is Sydney.", "I reconsidered. Agent B correctly notes it is Canberra, not Sydney. My revised answer: Canberra.", "Consensus: The capital of Australia is Canberra, established as a planned capital city in 1913.", ] agent_b_responses = [ "The capital of Australia is Canberra.", "My answer stands: Canberra. Agent A's initial claim of Sydney is a common misconception. Revised: Canberra.", ] agent_a = Agent( name="Agent A", system_prompt="You are a careful reasoner. State your answer concisely and correct errors when challenged.", llm=make_mock_llm(agent_a_responses), ) agent_b = Agent( name="Agent B", system_prompt="You are a critical evaluator. Identify factual errors and provide accurate corrections.", llm=make_mock_llm(agent_b_responses), ) result = debate("What is the capital of Australia?", agent_a, agent_b, rounds=1) print(f"\nFinal answer: {result}") ``` The output shows Agent A initially producing the common misconception that Sydney is Australia's capital, Agent B immediately correcting it, and Agent A revising its position in the subsequent round. The consensus correctly identifies Canberra. In a production system, the `MockLLM` is replaced with calls to a real model API, and the system prompts are tuned to encourage genuine disagreement and evidence-based revision rather than social capitulation. The following example demonstrates a minimal group-chat coordinator that routes messages to agents by role: ```python from __future__ import annotations from dataclasses import dataclass, field from typing import Any @dataclass class SharedMessagePool: """Central store with typed publish-subscribe routing.""" _store: list[dict[str, Any]] = field(default_factory=list) def publish(self, role: str, doc_type: str, content: str) -> None: self._store.append({"role": role, "doc_type": doc_type, "content": content}) def subscribe(self, doc_types: list[str]) -> list[dict[str, Any]]: return [m for m in self._store if m["doc_type"] in doc_types] def run_pipeline(task: str) -> dict[str, str]: pool = SharedMessagePool() pool.publish( role="product_manager", doc_type="prd", content=f"PRD for: {task}\nGoal: deliver a working implementation.\nAcceptance: all tests pass.", ) prd_messages = pool.subscribe(["prd"]) prd_text = prd_messages[-1]["content"] pool.publish( role="architect", doc_type="design", content=f"Design derived from PRD:\n{prd_text}\nApproach: modular functions, typed interfaces.", ) design_messages = pool.subscribe(["design"]) design_text = design_messages[-1]["content"] pool.publish( role="engineer", doc_type="code", content=f"# Implementation\n# Based on: {design_text[:60]}...\ndef solve(): return 42", ) code_messages = pool.subscribe(["code"]) code_text = code_messages[-1]["content"] pool.publish( role="qa", doc_type="tests", content=f"# Tests for code\nassert solve() == 42 # from: {code_text[:40]}...", ) return { msg["role"]: msg["content"] for msg in pool.subscribe(["prd", "design", "code", "tests"]) } artifacts = run_pipeline("implement a function that returns 42") for role, content in artifacts.items(): print(f"--- {role.upper()} ---") print(content[:120]) print() ``` This second demo implements the MetaGPT publish-subscribe pattern. Each "agent" publishes a typed document to the shared pool; downstream agents subscribe only to the document types they need. The `subscribe` method enforces the information dependency graph without requiring all agents to process the entire conversation history. ## Model or Harness? Localizing Failures to the Interaction That Produced Them {#sec-498-failure-localization} Section 6 names four ways a multi-agent system fails and @sec-498-role-drift adds a fifth. Read them back together and a gap opens up: every entry says *what went wrong*, and not one of them says *who should fix it*. An echo chamber might be the model's fault, because its answer distribution is too concentrated for independent samples to differ, or the harness's fault, because it handed every agent the same system prompt, the same seed, and the same temperature. Role drift might call for a change to the training objective or for a scaffolding change that severs the shortcut channel. The symptom is identical in each pair; the correct engineering response is not. Raj et al. [@raj2026modelorharness] give this gap a name, the **repair-assignment problem**, and argue that it is precisely why outcome-level evaluation, the kind this entire chapter has been quietly relying on, cannot tell you what to do next: the same visible failure may call for model post-training, harness engineering, environment redesign, or benchmark repair depending on where it originated. Their response is to stop labeling failures by what they look like and start labeling them by where in the system's interaction structure they arose. The result is an **interaction-centric taxonomy**: 41 failure modes, each assigned to an *edge* between two components together with a *fault side* naming which endpoint owns the repair. Model-side failures identify post-training targets, harness-side failures point to scaffolding and tool-integration fixes, and environment or grader failures expose evaluation conditions that need redesign. This section formalizes the schema as a graph, relocates several of this chapter's own failure modes into it, derives why outcome-level labels are provably insufficient to recover a repair and what observation restores identifiability, and works through the inter-rater reliability arithmetic behind the paper's headline reproducibility figure. ### The schema as a graph, and how big its label space is Let the agent system be a graph $G = (V, E)$ whose vertices are the components whose interactions generate agent behavior, $$ V = \{\text{model},\ \text{harness},\ \text{user},\ \text{tools},\ \text{memory},\ \text{environment}\}, \qquad n = |V| = 6, $$ and whose edges are the interactions between them. An interaction is an unordered pair $e = \{u, v\}$ with $u \neq v$, so the interaction structure is a subgraph of the complete graph $K_6$ and $$ |E| \;\le\; \binom{n}{2} \;=\; \binom{6}{2} \;=\; \frac{6 \cdot 5}{2} \;=\; 15 . $$ A failure label in this schema is a pair $(e, s)$ where $e \in E$ is the interaction that broke and $s \in e$ is the endpoint bearing the fault, so the label space is $$ \mathcal{L} \;=\; \{(e, s) : e \in E,\ s \in e\}, \qquad |\mathcal{L}| \;=\; \sum_{e \in E} |e| \;=\; 2|E| \;=\; 30 . $$ {#eq-498-label-space} It is worth deriving $|\mathcal{L}|$ a second way, because the count is easy to double. Work with *directed* edges instead: there are $n(n-1) = 30$ ordered pairs, and attaching a fault side drawn from $\{\text{source endpoint}, \text{target endpoint}\}$ gives $60$ candidate labels. But the map $\sigma\big((u,v), \text{source}\big) = \big((v,u), \text{target}\big)$ is a fixed-point-free involution on those 60, and it identifies exactly the pairs of descriptions that assert the same physical claim ("the $u$ to $v$ interaction broke and $u$ owns the repair"). Quotienting by $\sigma$ leaves $60 / 2 = 30$, agreeing with @eq-498-label-space. If one further admits self-interactions, the multi-agent case in which one model instance talks to another instance of the same component class, then $|E| \le 21$, but a loop has only one distinct endpoint and therefore carries one label rather than two, giving $|\mathcal{L}| \le 15 \cdot 2 + 6 \cdot 1 = 36$. Now compare against the catalogue. The paper organizes $|\mathcal{M}| = 41$ failure modes by assigning each one a label, that is, by a map $\phi : \mathcal{M} \to \mathcal{L}$. Since $41 > 36 \ge |\mathcal{L}|$, the map cannot be injective, and pigeonhole forces at least $\lceil 41/30 \rceil = 2$ modes into some single cell. This is the structurally important fact about the taxonomy, and it cuts against the reading a skeptic reaches for first. A combinatorially exhaustive taxonomy would be built by writing down the 30 cells and inventing one mode to sit in each, which would be complete by construction and empty of content, since its coverage would be a theorem about $\binom{6}{2}$ rather than a claim about agents. The actual catalogue is neither a bijection with the grid nor a subset of it: it names 41 modes read off benchmarks, system cards, published reports, and logged trajectories, then *projects* them down onto 30 cells. The cells are the coordinate system; the modes are the data. Sparsity enters as the empirical claim that the induced distribution over cells is heavy-tailed rather than flat, because real failures pile up on a few interactions (the model to harness edge above all) and leave others nearly unvisited. The simulation below builds in exactly that skew, and it will turn out that the skew is not a detail but the thing that makes measuring the schema's reproducibility delicate. ```{mermaid} %%| label: fig-498-interaction-graph %%| fig-cap: "The agent system as a graph. Vertices are components, edges are the interactions among them, and a failure label names one edge plus the endpoint that owns the repair. The lower half shows why the fault side is load bearing: one visible outcome is compatible with either endpoint of the model to harness edge, and the two readings send you to different engineering teams." flowchart TB subgraph G["component interaction graph"] M["model"] H["harness"] U["user"] T["tools"] MEM["memory"] E["environment"] M --- H M --- MEM M --- T H --- T H --- MEM H --- U H --- E T --- E U --- E MEM --- E end O["observed outcome is a confident wrong consensus"] G --> O O --> A1["model harness edge with model at fault"] O --> A2["model harness edge with harness at fault"] A1 --> R1["repair is model post training"] A2 --> R2["repair is harness engineering"] ``` ### Relocating this chapter's failure modes The schema earns its keep only if it says something about failures the reader already knows, so here are this chapter's own, rewritten as (edge, fault side) pairs. | Failure as this chapter describes it | Edge | Fault side | Repair it assigns | What outcome-level evaluation sees | |---|---|---|---|---| | Echo chamber (Section 6.1), harness reading | model, harness | harness | diversify prompts, seeds, model versions | confident wrong consensus | | Echo chamber (Section 6.1), model reading | model, harness | model | post-train for output diversity | confident wrong consensus | | Role collapse (Section 6.2), harness reading | model, memory | harness | truncate or re-inject the role prompt | agent answers outside its role | | Role collapse (Section 6.2), model reading | model, memory | model | post-train for long-context instruction adherence | agent answers outside its role | | Role drift (@sec-498-role-drift) | model, harness | model | post-train under the anchor of @eq-498-role-anchor | terminal accuracy went *up* | | Context length explosion (Section 6.3) | harness, memory | harness | summarize, retain selectively, subscribe by type | loop or timeout | | Router instability (@sec-routing-meaningful) | harness, user | harness | replace the KNN router with a prompted one | correct specialty, arbitrary agent | | Grader rejects a correct run | harness, environment | environment | benchmark repair | scored zero on a plausible run | Two of these deserve unpacking, because they show the machinery doing work rather than relabeling. **Echo chambers occupy one edge and two fault sides.** Section 6.1 diagnoses the echo chamber as a loss of diversity in the initial answer distribution, and @sec-hive-mind sharpens that diagnosis: if every agent's quality estimate $r_a$ is drawn from the same biased source, the replicator dynamic of @eq-498-drift amplifies the shared estimate instead of discovering the best answer. But "the same biased source" is ambiguous in exactly the way the taxonomy is built to disambiguate. Under the harness reading, the scaffolding is at fault: it instantiated $N$ agents from one system prompt at one temperature with one seed, and a model perfectly capable of producing diverse samples was never asked to. The repair is harness engineering, and it is cheap. Under the model reading, the harness did diversify and the model's conditional distribution is simply too peaked for prompt variation to move it, in which case the repair is post-training and it is expensive. Both readings sit on the model to harness edge; they differ only in $s$; and the observable, a confident wrong consensus, is identical. This is the repair-assignment problem in its purest form, and it is why the ablation that distinguishes them (hold the harness fixed, swap the model; hold the model fixed, diversify the harness) is not optional diligence but the measurement that produces the label. **Role drift is a failure that outcome-level evaluation scores as a success.** @sec-498-role-drift is the sharper case, because there the visible outcome is not a symptom at all. End-to-end RL raised terminal accuracy from 0.673 to 0.894 in that simulation while the decomposer stopped decomposing. In schema terms the failure sits on the model to harness edge with the fault side at the model: the harness still supplies a correct role prompt $r_m$, and it is the weights that have drifted so that the log-ratio $\delta_m(h; \theta)$ no longer carries the role's intended effect. The repair is therefore post-training, specifically the anchored objective of @eq-498-role-anchor, and not a scaffolding change. Note what this does to the observation map: the outcome label for this failure is "the run succeeded", so the fiber of that outcome contains both genuine coordination and role violation. No policy that reads only outcomes can separate them, which is the formal restatement of the warning that closed @sec-498-role-drift. ### Why outcome-level labels cannot name a repair Fix notation. Let $\mathcal{C}$ be the set of causes, which here is the label space $\mathcal{L}$ of @eq-498-label-space; let $\mathcal{R}$ be the set of repair targets, here the four the paper distinguishes; let $$ \rho : \mathcal{C} \to \mathcal{R} $$ be the map sending a cause to the intervention that actually fixes it, which is well defined precisely because the fault side names a component and each component has an owner. Let $$ \omega : \mathcal{C} \to \mathcal{O} $$ be the observation available under outcome-level evaluation, with $\mathcal{O}$ a small set of visible symptoms. A repair policy is a map $\pi : \mathcal{O} \to \mathcal{R}$, and the question is whether any $\pi$ can be correct. **Proposition (repair identifiability).** For deterministic $\omega$, there exists $\pi$ with $\pi(\omega(c)) = \rho(c)$ for every $c \in \mathcal{C}$ if and only if $\rho$ is constant on every fiber $\omega^{-1}(o)$. *Proof.* If $\rho$ is constant on fibers, define $\pi(o)$ to be that constant value (arbitrary on empty fibers); then $\pi(\omega(c)) = \rho(c)$ by construction. Conversely, suppose some fiber contains $c \neq c'$ with $\omega(c) = \omega(c') = o$ but $\rho(c) \neq \rho(c')$. Then $\pi(o)$ is a single element of $\mathcal{R}$ and cannot equal two distinct values, so no such $\pi$ exists. $\square$ The whole of the repair-assignment problem is thus the single sentence "some fiber of $\omega$ is not $\rho$-constant", and in this setting the failure is structural rather than accidental. The outcome label records what the *system* did, and what the system did is produced by the interaction rather than by either endpoint alone, so a realistic $\omega$ depends on the edge $e$ and not on the fault side $s$. When $\omega(e, s)$ is independent of $s$, every fiber is a union of whole edges, $$ \omega^{-1}(o) \;=\; \{(e, s) : e \in E_o,\ s \in e\} \quad\text{for some } E_o \subseteq E , $$ and $\rho$ is constant on that fiber only if both endpoints of every $e \in E_o$ demand the same repair. On the model to harness edge they demand post-training and harness engineering respectively, so the condition fails and $\rho$ does not factor through $\omega$. The map from (cause, repair) pairs to observed failures is many-to-one and therefore not invertible. **The additional observation that restores identifiability is the interaction trace**, meaning a record of which interaction was exercised and how each endpoint behaved within it, since the localized label $\ell(c) = c$ trivially satisfies $\rho = \rho \circ \ell$. That is not a tautology dressed as a theorem: it is the statement that the trace, unlike the outcome, is a sufficient statistic for the repair decision, so collecting it is the minimum an evaluation must do if its output is meant to be actionable. When $\omega$ is stochastic and causes are drawn as $C \sim p$, identifiability fails gracefully rather than absolutely, and the residue is measurable. The best any outcome-level policy can do is the Bayes rule $$ \pi^{\star}(o) \;\in\; \arg\max_{r \in \mathcal{R}} \Pr\!\big[\rho(C) = r \,\big|\, O = o\big], \qquad \mathrm{Acc}^{\star}_{\text{out}} \;=\; \sum_{o \in \mathcal{O}} \Pr[O = o] \, \max_{r \in \mathcal{R}} \Pr\!\big[\rho(C) = r \,\big|\, O = o\big], $$ {#eq-498-bayes-repair} and no cleverness improves on it, because the maximum is taken over all functions of $o$. Two information-theoretic statements bracket the loss. First, $\rho(C) \to C \to O$ is a Markov chain, so the data-processing inequality gives $$ I\big(\rho(C); O\big) \;\le\; I\big(\rho(C); C\big) \;=\; H\big(\rho(C)\big), $$ with the localized label attaining the bound and the deficit $H(\rho(C) \mid O)$ counting the bits about the repair that the outcome label discards. Second, Fano's inequality converts those discarded bits into a floor on how often any decoder must be wrong: for any estimator of $\rho(C)$ from $O$ with error probability $P_e$, $$ H\big(\rho(C) \mid O\big) \;\le\; h_2(P_e) + P_e \log_2\big(|\mathcal{R}| - 1\big) \;\;\Longrightarrow\;\; P_e \;\ge\; \frac{H\big(\rho(C) \mid O\big) - 1}{\log_2 |\mathcal{R}|}, $$ {#eq-498-fano} using $h_2(P_e) \le 1$ for the binary entropy. Whenever the conditional entropy exceeds one bit, no reading of outcome labels, human or automated, achieves zero repair error. ### Measuring whether the schema can be applied reproducibly A taxonomy that no two annotators apply the same way is a private language, so the paper evaluates reproducibility by having independent reasoning agents label failures and comparing against human category labels, reporting that across four frontier models the strongest judge reaches Cohen's $\kappa = 0.76$. That number deserves to be unpacked rather than quoted. Let two raters assign labels from a space of size $K$, and let $P_{ij}$ be the probability that rater one says $i$ while rater two says $j$, with marginals $P_{i+} = \sum_j P_{ij}$ and $P_{+j} = \sum_i P_{ij}$. Observed agreement is the diagonal mass and chance agreement is what two raters would score if they kept their marginal habits but chose independently: $$ p_o \;=\; \sum_{i=1}^{K} P_{ii}, \qquad p_e \;=\; \sum_{i=1}^{K} P_{i+} P_{+i}, \qquad \kappa \;=\; \frac{p_o - p_e}{1 - p_e}. $$ {#eq-498-kappa} The construction is a normalization, and rewriting it makes that plain. Since $1 - p_o$ is observed disagreement and $1 - p_e$ is chance disagreement, $$ \kappa \;=\; 1 - \frac{1 - p_o}{1 - p_e} \;=\; 1 - \frac{d_o}{d_e}, $$ so $\kappa$ is one minus the fraction of chance-level disagreement that actually survives. Hence $\kappa = 1$ when the raters never disagree, $\kappa = 0$ when they disagree exactly as much as independent raters with the same marginal habits would, and $\kappa < 0$ when they manage to do worse than that. Solving @eq-498-kappa the other way, $$ p_o \;=\; p_e + \kappa\,(1 - p_e), $$ {#eq-498-po-affine} exhibits raw agreement as an affine function of $\kappa$ with intercept $p_e$: every point of chance agreement is added to $p_o$ for free, whatever the raters do. This is why raw agreement misleads on a large label space, though the mechanism is the opposite of the naive intuition. If prevalence were uniform over $K$ labels and both raters matched it, $p_e = 1/K$, which for $K = 30$ is $0.033$ and negligible, so $p_o$ and $\kappa$ would nearly coincide. Prevalence is never uniform. When both raters share a marginal $p$, chance agreement is the collision probability $$ p_e \;=\; \sum_{i=1}^{K} p_i^2 \;=\; \frac{1}{K_{\text{eff}}}, \qquad K_{\text{eff}} \;=\; \Big(\sum_i p_i^2\Big)^{-1} , $$ {#eq-498-keff} the inverse Simpson index, which is the *effective* number of labels and is bounded above by $K$ with equality only in the uniform case. A nominally 30-cell taxonomy whose modes concentrate on a handful of interactions has a small $K_{\text{eff}}$ and therefore a large $p_e$, and by @eq-498-po-affine that inflation flows straight into raw agreement. The sparsity established earlier is thus not a separate observation from the measurement problem; it is its cause. One closed form makes the correction exact and is worth having. Suppose the judge names the true label with probability $a$ and otherwise draws independently from the prevalence $p$, an error model that is ungrounded but not adversarial. The judge's marginal is then $q_i = a\,p_i + (1-a)\,p_i = p_i$, identical to the human's, so $$ p_e \;=\; \sum_i p_i q_i \;=\; \sum_i p_i^2 \;=\; S, \qquad p_o \;=\; a + (1-a)\sum_i p_i^2 \;=\; a + (1-a) S, $$ and substituting into @eq-498-kappa, $$ \kappa \;=\; \frac{a + (1-a)S - S}{1 - S} \;=\; \frac{a\,(1 - S)}{1 - S} \;=\; a . $$ {#eq-498-kappa-recovers-skill} Cohen's $\kappa$ recovers the judge's actual skill exactly, no matter how skewed the prevalence, while raw agreement overstates it by $(1-a)S$. That is the entire case for reporting $\kappa$ instead of accuracy on a sparse label space, and the simulation checks it numerically. The simulation below builds the 30-cell space of @eq-498-label-space with a heavy-tailed prevalence, scores four judges of increasing skill plus two degenerate raters against human labels, and then runs the repair-assignment comparison of @eq-498-bayes-repair with an outcome channel that depends only on the edge and never on the fault side, exactly the structural condition derived above. ```{python} #| label: fig-498-failure-localization #| fig-cap: "Left: over a 30-cell interaction taxonomy with heavy-tailed prevalence, raw agreement sits a constant distance above Cohen's kappa (the chance-agreement intercept of the affine relation), and a lazy judge that defaults to the most common cell buys raw agreement it has not earned, landing above the p_o curve and below the kappa curve at the same true skill. Right: expected repair success under four observation regimes. The outcome-level symptom, decoded optimally, barely improves on ignoring the evidence entirely, while an interaction-localized label from a judge no better than the kappa = 0.76 one reported by Raj et al. recovers most of the gap to perfect assignment." #| code-fold: false import itertools import numpy as np import matplotlib.pyplot as plt rng = np.random.default_rng(20260730) # ---- The label space: an edge of the component graph plus a fault side ---- COMPONENTS = ["model", "harness", "user", "tools", "memory", "environment"] EDGES = list(itertools.combinations(range(len(COMPONENTS)), 2)) # C(6,2) = 15 CELLS = [(e, s) for e in EDGES for s in (0, 1)] # 2 * 15 = 30 n_cells = len(CELLS) # Which repair a correctly localized failure calls for, keyed by the faulty component. REPAIR_OF = {"model": "post-training", "harness": "harness engineering", "tools": "harness engineering", "memory": "harness engineering", "environment": "environment redesign", "user": "benchmark repair"} REPAIRS = ["post-training", "harness engineering", "environment redesign", "benchmark repair"] cell_repair = np.array([REPAIRS.index(REPAIR_OF[COMPONENTS[e[s]]]) for (e, s) in CELLS]) # Prevalence over cells: heavy-tailed, as a catalogue read off real trajectories is. rank = rng.permutation(n_cells) w = 1.0 / (1.0 + rank) ** 1.2 p_cell = w / w.sum() S = float((p_cell ** 2).sum()) # collision probability = chance agreement print(f"components |V| : {len(COMPONENTS)}") print(f"pairwise interactions |E| = C(6,2) : {len(EDGES)}") print(f"labels (edge, fault side) : {n_cells}") print(f"catalogued failure modes (Raj et al.) : 41") print(f"heaviest single label : {p_cell.max():.3f}") print(f"collision mass sum p_i^2 : {S:.3f} (uniform would give {1/n_cells:.3f})") print(f"effective number of labels 1/sum p^2 : {1/S:.1f}") # ---- Cohen's kappa ---- def cohen_kappa(a, b, k): """Rows = human labels, columns = judge labels, over a k-label space.""" M = np.zeros((k, k)) np.add.at(M, (a, b), 1.0) P = M / M.sum() p_o = float(np.trace(P)) # observed agreement p_e = float(P.sum(axis=1) @ P.sum(axis=0)) # chance agreement return p_o, p_e, (p_o - p_e) / (1.0 - p_e) def judge_labels(truth, skill, laziness, rng): """With probability `skill` the judge names the true cell. Otherwise it either falls back on the single most common cell (probability `laziness`) or draws from the prevalence prior, a plausible but ungrounded guess.""" out = np.empty(truth.size, dtype=int) correct = rng.random(truth.size) < skill out[correct] = truth[correct] rest = ~correct n_rest = int(rest.sum()) lazy = rng.random(n_rest) < laziness out[rest] = np.where(lazy, int(p_cell.argmax()), rng.choice(n_cells, size=n_rest, p=p_cell)) return out N = 60_000 truth = rng.choice(n_cells, size=N, p=p_cell) # the human category labels judges = [("judge A (weakest)", 0.34, 0.0), ("judge B", 0.51, 0.0), ("judge C", 0.64, 0.0), ("judge D (strongest)", 0.76, 0.0), ("majority guesser", 0.00, 1.0), ("lazy judge", 0.42, 1.0)] print(f"\n{'rater':>20}{'raw agreement p_o':>20}{'chance p_e':>13}{'Cohen kappa':>14}") rows = [] for name, skill, lazy in judges: p_o, p_e, kap = cohen_kappa(truth, judge_labels(truth, skill, lazy, rng), n_cells) rows.append((name, p_o, p_e, kap)) print(f"{name:>20}{p_o:>20.3f}{p_e:>13.3f}{kap:>14.3f}") maj, lazyj, jb = rows[4], rows[5], rows[1] print(f"\nmajority guesser agrees on {maj[1]:.1%} of items with kappa = {maj[3]:.3f}") print(f"lazy judge vs judge B: raw agreement {lazyj[1]:.3f} > {jb[1]:.3f}, " f"but kappa {lazyj[3]:.3f} < {jb[3]:.3f}") print("closed form kappa = skill under prior-following errors: " f"skill {[j[1] for j in judges[:4]]} gives kappa {[round(rows[i][3], 3) for i in range(4)]}") # ---- Repair assignment: the outcome symptom depends only on WHICH interaction # broke, never on which side of it owns the repair. ---- SYMPTOMS = ["wrong final answer", "task left incomplete", "unrecovered tool error", "loop or timeout", "scored zero on a plausible run"] sym_given_edge = np.random.default_rng(7).dirichlet(np.full(len(SYMPTOMS), 0.2), size=len(EDGES)) cell_edge = np.array([EDGES.index(e) for (e, s) in CELLS]) J = p_cell[:, None] * sym_given_edge[cell_edge] # exact joint over (cell, symptom) p_sym = J.sum(axis=0) R_S = np.zeros((len(REPAIRS), len(SYMPTOMS))) np.add.at(R_S, (cell_repair, slice(None)), J) # joint over (repair, symptom) p_rep = R_S.sum(axis=1) best_per_sym = R_S.argmax(axis=0) # Bayes-optimal outcome policy acc_outcome = float(R_S.max(axis=0).sum()) acc_prior = float(p_rep.max()) # ignore the symptom entirely acc_localized = float((cell_repair[judge_labels(truth, 0.76, 0.0, rng)] == cell_repair[truth]).mean()) def entropy(p): p = p[p > 0] return float(-(p * np.log2(p)).sum()) H_R = entropy(p_rep) H_R_given_S = float(sum(p_sym[j] * entropy(R_S[:, j] / p_sym[j]) for j in range(len(SYMPTOMS)))) fano = (H_R_given_S - 1.0) / np.log2(len(REPAIRS)) print(f"\n{'repair target':>24}{'share of failures':>20}") for r, m in zip(REPAIRS, p_rep): print(f"{r:>24}{m:>20.3f}") print(f"\n{'outcome-level symptom':>32}{'P(symptom)':>13}{'best repair given it':>24}{'P(correct)':>13}") for j, s in enumerate(SYMPTOMS): print(f"{s:>32}{p_sym[j]:>13.3f}{REPAIRS[best_per_sym[j]]:>24}" f"{R_S[best_per_sym[j], j] / p_sym[j]:>13.3f}") print(f"\n{'repair policy':>44}{'expected success':>20}") print(f"{'prior only (no observation)':>44}{acc_prior:>20.3f}") print(f"{'Bayes-optimal on the outcome symptom':>44}{acc_outcome:>20.3f}") print(f"{'interaction label from a kappa = 0.76 judge':>44}{acc_localized:>20.3f}") print(f"{'perfect interaction label':>44}{1.0:>20.3f}") print(f"\nH(repair) = {H_R:.3f} bits, H(repair | symptom) = {H_R_given_S:.3f} bits") print(f"I(repair ; symptom) = {H_R - H_R_given_S:.3f} bits, " f"{100 * (H_R - H_R_given_S) / H_R:.1f}% of what the interaction label supplies") print(f"Fano lower bound on outcome-level error = {fano:.3f} (actual {1 - acc_outcome:.3f})") # ---- Figure ---- skills = np.linspace(0.0, 1.0, 21) curves = [cohen_kappa(truth, judge_labels(truth, a, 0.0, rng), n_cells) for a in skills] po_curve = [c[0] for c in curves] kap_curve = [c[2] for c in curves] fig, axes = plt.subplots(1, 2, figsize=(10.6, 4.0)) ax = axes[0] ax.plot(skills, po_curve, "-o", ms=3, color="#b5651d", label="raw agreement $p_o$") ax.plot(skills, kap_curve, "-o", ms=3, color="#3b6ea5", label=r"Cohen's $\kappa$") ax.axhline(0.76, ls=":", color="grey", lw=1) ax.annotate(r"reported $\kappa=0.76$", (0.03, 0.79), fontsize=8, color="grey") ax.scatter([0.42, 0.42], [lazyj[1], lazyj[3]], marker="X", s=70, color="#a03030", zorder=5) ax.plot([0.42, 0.42], [lazyj[3], lazyj[1]], color="#a03030", lw=1.2, ls="--") ax.annotate("lazy judge: raw agreement\nabove the curve, kappa below", (0.42, 0.54), textcoords="offset points", xytext=(12, -6), fontsize=8, color="#a03030", ha="left") ax.set_xlabel("judge skill (probability of naming the true label)") ax.set_ylabel("score") ax.set_title("Raw agreement is inflated; kappa is not") ax.legend(fontsize=8, loc="lower right") ax = axes[1] names = ["prior\nonly", "outcome\nsymptom\n(Bayes)", "interaction\nlabel\n($\\kappa$=0.76)", "interaction\nlabel\n(perfect)"] vals = [acc_prior, acc_outcome, acc_localized, 1.0] bars = ax.bar(names, vals, color=["#999999", "#b5651d", "#3b6ea5", "#2f5d3a"]) for b, v in zip(bars, vals): ax.text(b.get_x() + b.get_width() / 2, v + 0.015, f"{v:.3f}", ha="center", fontsize=8) ax.set_ylim(0, 1.12) ax.set_ylabel("expected repair success") ax.set_title("What the interaction trace buys you") fig.tight_layout() plt.show() ``` **Reading the reliability table.** The prevalence is sharply skewed: the heaviest single cell carries 0.326 of the mass and the collision mass is $S = 0.146$, so by @eq-498-keff the effective number of labels is 6.8, not 30. A taxonomy that looks like a 30-way classification behaves, for agreement purposes, like a seven-way one. The four graded judges confirm @eq-498-kappa-recovers-skill to Monte Carlo precision: skills of 0.34, 0.51, 0.64, and 0.76 yield $\kappa$ of 0.340, 0.506, 0.637, and 0.757, while their raw agreements run 0.436, 0.579, 0.690, and 0.793, each inflated by roughly $(1-a)S$ as the closed form predicts (at $a = 0.76$ the prediction is $0.76 + 0.24 \times 0.146 = 0.795$ against a measured 0.793). The two degenerate raters show why the correction is not cosmetic. A rater that ignores the trajectory entirely and always answers with the most common cell agrees with the human on 32.7% of items and scores $\kappa = 0.000$ exactly, because for a constant rater $p_o = p_e = p_{\max}$ and the numerator of @eq-498-kappa vanishes identically. More pointedly, the lazy judge, which has genuine skill 0.42 but falls back on the majority cell whenever it is unsure, posts raw agreement of 0.609 against judge B's 0.579 while scoring $\kappa = 0.477$ against judge B's 0.506. On raw agreement the lazy judge looks better; on $\kappa$ it is worse, and $\kappa$ is right, because the extra agreement was purchased with prior mass rather than with evidence. Set against that backdrop, $\kappa = 0.76$ over a sparse taxonomy is a strong result and should still be read soberly. On the conventional Landis and Koch bands it falls in the "substantial" range (0.61 to 0.80) and short of "almost perfect" (0.81 to 1.00), and those bands are interpretive convention rather than theorem. The operational reading is @eq-498-kappa-recovers-skill run backwards: roughly three quarters of the judge's category assignments reflect structure shared with the human annotator, and something close to one item in four would still be filed differently by a person. That is good enough to support the paper's claim that the categories capture shared structure rather than annotator-specific preference, and it is not good enough to auto-label a benchmark unsupervised. It is also worth stating the standard caveat that $\kappa$ is not comparable across studies with different label prevalences, precisely because $p_e$ depends on the marginals, so a $\kappa$ measured on one failure corpus does not transfer unexamined to another. **Reading the repair-assignment table.** The four repair targets are unevenly loaded by construction: harness engineering owns three of the six components and 0.617 of the failure mass, against 0.171 for environment redesign, 0.144 for post-training, and 0.069 for benchmark repair. That sets a punishing baseline, since a team that reflexively blames the harness and never looks at a trace is right 0.617 of the time. The Bayes-optimal outcome-level policy of @eq-498-bayes-repair, which is the best that any decoding of the visible symptom can achieve, reaches only 0.690. Four of the five symptoms point at harness engineering with posteriors between 0.563 and 0.964, and only "task left incomplete" flips the recommendation, to post-training, and even then with posterior 0.427, which is to say the recommendation it produces is more likely wrong than right. The information accounting says the same thing without the anecdote: $H(\text{repair}) = 1.534$ bits, $H(\text{repair} \mid \text{symptom}) = 1.129$ bits, so the symptom carries $I = 0.405$ bits, only 26.4% of what the interaction label supplies. Feeding those numbers into @eq-498-fano gives a floor of 0.064 on the outcome-level error rate against an actual 0.310; the bound is valid but loose here, and its value is qualitative rather than numerical, certifying that no decoder whatsoever can reach zero error while more than a bit of conditional entropy remains. The comparison that matters is the last two rows. A localized label supplied by a judge no better than the $\kappa = 0.76$ one reported in the paper assigns the correct repair 0.867 of the time, against the outcome-level ceiling of 0.690, and a perfect localized label reaches 1.000 by construction. An imperfect interaction label therefore closes about 57% of the gap between the outcome-level ceiling and perfection, which is the practical case for the taxonomy: you do not need flawless localization to beat outcome-level evaluation, you only need localization that is better than chance on the fault side, because the fault side is the coordinate the outcome cannot see at all. The kappa computation is worth writing out on its own, both because it is three lines and because those three lines are the difference between an evaluation that reports something and one that reports something meaningful. The Python tab runs; the Julia and Rust tabs are illustrative. ::: {.panel-tabset} ## Python ```{python} #| label: code-498-kappa import numpy as np def kappa_from_confusion(confusion): """Cohen's kappa from a raw count matrix: rows are rater one's labels, columns are rater two's. Returns (p_o, p_e, kappa).""" P = np.asarray(confusion, dtype=float) P = P / P.sum() p_o = float(np.trace(P)) # observed agreement p_e = float(P.sum(axis=1) @ P.sum(axis=0)) # chance agreement return p_o, p_e, (p_o - p_e) / (1.0 - p_e) # Three cells of the taxonomy, human labels down the rows, judge labels across. counts = [[420, 30, 10], [55, 120, 25], [15, 20, 55]] p_o, p_e, kappa = kappa_from_confusion(counts) print(f"raw agreement p_o = {p_o:.3f}") print(f"chance agreement p_e = {p_e:.3f}") print(f"Cohen kappa = {kappa:.3f}") ``` ## Julia ```julia using LinearAlgebra """Cohen's kappa from a raw count matrix. Returns (p_o, p_e, kappa).""" function kappa_from_confusion(confusion::AbstractMatrix{<:Real}) P = confusion ./ sum(confusion) p_o = sum(diag(P)) # observed agreement row = vec(sum(P, dims = 2)) col = vec(sum(P, dims = 1)) p_e = dot(row, col) # chance agreement return p_o, p_e, (p_o - p_e) / (1 - p_e) end counts = [420 30 10; 55 120 25; 15 20 55] p_o, p_e, kappa = kappa_from_confusion(counts) println("raw agreement p_o = ", round(p_o, digits = 3)) println("chance agreement p_e = ", round(p_e, digits = 3)) println("Cohen kappa = ", round(kappa, digits = 3)) ``` ## Rust ```rust /// Cohen's kappa from a raw count matrix. Returns (p_o, p_e, kappa). fn kappa_from_confusion<const K: usize>(confusion: &[[f64; K]; K]) -> (f64, f64, f64) { let total: f64 = confusion.iter().flatten().sum(); let mut p_o = 0.0; let mut row = [0.0f64; K]; let mut col = [0.0f64; K]; for i in 0..K { for j in 0..K { let p = confusion[i][j] / total; if i == j { p_o += p; // observed agreement } row[i] += p; col[j] += p; } } let p_e: f64 = (0..K).map(|i| row[i] * col[i]).sum(); // chance agreement (p_o, p_e, (p_o - p_e) / (1.0 - p_e)) } fn main() { let counts = [[420.0, 30.0, 10.0], [55.0, 120.0, 25.0], [15.0, 20.0, 55.0]]; let (p_o, p_e, kappa) = kappa_from_confusion(&counts); println!("raw agreement p_o = {p_o:.3}"); println!("chance agreement p_e = {p_e:.3}"); println!("Cohen kappa = {kappa:.3}"); } ``` ::: That small example is worth one more look, because it lands on a striking coincidence. Its raw agreement is 0.793, identical to judge D's raw agreement over the 30-cell space, and yet its $\kappa$ is 0.606 against judge D's 0.757. The difference is entirely in the chance term: 0.476 here on three heavily unbalanced labels, against 0.147 there. Two evaluations reporting the same headline agreement can describe raters of quite different quality, and only @eq-498-kappa distinguishes them. **What to take from this section.** The taxonomy is a coordinate system, and the argument for adopting it is not that its 41 modes are the right 41. It is that outcome-level labels are provably non-invertible with respect to the repair decision (the identifiability proposition), that the coordinate they are missing is the fault side rather than more granular symptom vocabulary, and that recovering that coordinate is cheap enough to be worth doing even imperfectly. The chapter's own catalogue makes the point better than an abstract argument does: Section 6.1 and @sec-498-role-drift describe failures on the *same edge* that differ only in which endpoint is at fault, and every mitigation this chapter has proposed silently presumed an answer to that question. Diversifying system prompts is a harness-side repair; it does nothing if the model's distribution is the degenerate one. Anchoring the role effect is a model-side repair; it does nothing if the harness never supplied a coherent role prompt to begin with. Combined with the closing recommendation of @sec-498-role-drift, the operational rule is short: **record the interaction trace, label failures by edge and fault side, and report per-module role fidelity alongside end-task accuracy**, because a benchmark score tells you that your multi-agent system is broken and never once tells you whom to send the ticket to. ## References 1. Qian, C., Cong, X., Yang, C., Chen, W., Su, Y., Xu, J., Liu, Z., and Sun, M. (2023). Communicative agents for software development. arXiv:2307.07924. https://arxiv.org/abs/2307.07924 2. Wu, Q., Bansal, G., Zhang, J., Wu, Y., Li, B., Zhu, E., Jiang, L., Zhang, X., Zhang, S., Liu, J., Awadallah, A. H., White, R. W., Burger, D., and Wang, C. (2023). AutoGen: Enabling next-gen LLM applications via multi-agent conversation. arXiv:2308.08155. https://arxiv.org/abs/2308.08155 3. Hong, S., Zheng, X., Chen, J., Cheng, Y., Wang, J., Zhang, C., Wang, Z., Yau, S. K. S., Lin, Z., Zhou, L., Ran, C., Xiao, L., and Wu, C. (2023). MetaGPT: Meta programming for a multi-agent collaborative framework. arXiv:2308.00352. https://arxiv.org/abs/2308.00352 4. Du, Y., Li, S., Torralba, A., Tenenbaum, J. B., and Mordatch, I. (2023). Improving factuality and reasoning in language models through multiagent debate. arXiv:2305.14325. https://arxiv.org/abs/2305.14325 5. Soma, K., Bouteiller, Y., Hamann, H., and Beltrame, G. (2024). The hive mind is a single reinforcement learning agent. arXiv:2410.17517 (preprint, revised through 2026). https://arxiv.org/abs/2410.17517 6. Huot, F., Kaisers, M., and Lapata, M. (2026). When is routing meaningful? Diversity and robustness in language model societies. arXiv:2607.09197. https://arxiv.org/abs/2607.09197 7. Cao, X., Srinivasan, S., and Bakker, M. A. (2026). Do modules stay in their lane? Role drift in compound LLM systems. arXiv:2607.21627. https://arxiv.org/abs/2607.21627 8. Raj, H., Gupta, V., Mahmoud, A., Dumitru, R.-G., Yi, D., Sabharwal, A., and He, Y. (2026). Model or harness? An interaction-centric taxonomy for localizing agent failures. arXiv:2607.28802. https://arxiv.org/abs/2607.28802 9. Tranchero, M., Brenninkmeijer, C.-F., Murugan, A., and Nagaraj, A. (2026). Simulating strategic interactions with AI agents. *Strategic Management Journal*, 47(11), 2932 to 2958. https://doi.org/10.1002/smj.70112

232.1 Why Multiple Agents

232.1.1 Division of Labor and Specialization

232.1.2 Parallelism

232.1.3 Adversarial Checking and Debate

232.2 ChatDev: Simulating a Software Company

232.2.1 The Inception Prompting Technique

232.2.2 Structured Communication Protocol

232.3 AutoGen: Flexible Conversational Agents

232.3.1 Core Abstractions

232.3.2 Conversation Topologies

232.4 MetaGPT: Standard Operating Procedures as Agent Programs

232.4.1 Role-Structured Output Schema

232.4.2 Publish-Subscribe Communication

232.5 Multi-Agent Debate

232.5.1 Why Debate Improves Reasoning

232.5.2 Empirical Results

232.5.3 Aggregation Strategies

232.5.4 Why Voting Converges: The Hive-Mind Equivalence

232.6 Failure Modes

232.6.1 Echo Chambers

232.6.2 Role Collapse

232.6.3 Context Length Explosion

232.6.4 Coordination Overhead

232.7 When Is Routing Meaningful? Diversity and Stability as Preconditions

232.8 Role Drift: When Terminal Accuracy Hides a Broken Division of Labor

232.9 Implementation: Two-Agent Debate in Python

232.10 Model or Harness? Localizing Failures to the Interaction That Produced Them

232.10.1 The schema as a graph, and how big its label space is

232.10.2 Relocating this chapter’s failure modes

232.10.3 Why outcome-level labels cannot name a repair

232.10.4 Measuring whether the schema can be applied reproducibly

232.11 References
