import numpy as np
import pandas as pd
import tensorflow as tf
from tensorflow.keras.layers import Input, Dense, Dropout, Concatenate, Attention
from tensorflow.keras.models import Model
from sklearn.model_selection import train_test_split, KFold
from sklearn.preprocessing import StandardScaler
from sklearn.metrics import mean_squared_error, accuracy_score, confusion_matrix, classification_report
import matplotlib.pyplot as plt
import seaborn as sns
# Set random seed for reproducibility
np.random.seed(42)
# Generate synthetic dataset
n_samples = 100
# Generate ovd_days (overdue days)
ovd_days = np.random.randint(0, 120, size=n_samples)
# Generate overdue amount based on ovd_days (overdue)
ovd_amount = np.where(ovd_days > 0, np.random.uniform(100, 1000, size=n_samples), 0)
# Define the target variable 'default' with imbalance (less than 1% default)
default = np.where(np.random.rand(n_samples) < 0.01, 1, 0)
# Generate additional 16 features (e.g., income, age, credit score, etc.)
additional_features = {
f'feature_{i}': np.random.uniform(0, 1, size=n_samples)
for i in range(1, 17)
}
# Create a DataFrame
data = pd.DataFrame({
'ovd_days': ovd_days,
'ovd_amount': ovd_amount,
'default': default
})
# Add additional features to the DataFrame
for feature_name, values in additional_features.items():
data[feature_name] = values
# Data exploration and sanity check
print(data.describe())
print(data.isnull().sum())
print("Class distribution for 'default':")
print(data['default'].value_counts(normalize=True))

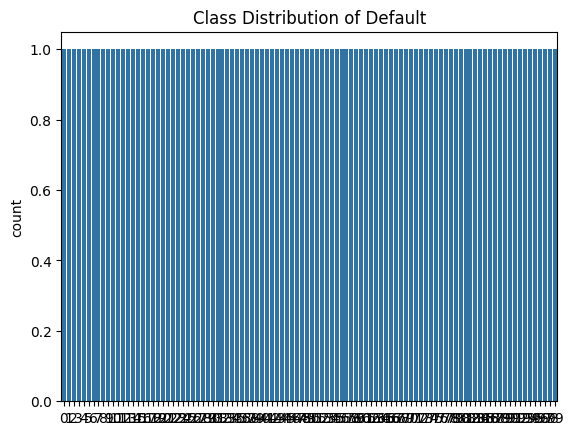

# Plot class imbalance
sns.countplot(x='default', data=data)
plt.title('Class Distribution of Default')
plt.show()
# Separate features and targets
X = data.drop(columns=['ovd_amount', 'default'])
y_classification = data['default']
y_regression = data['ovd_amount']
# Split the data into training, test, and holdout sets
X_train, X_temp, y_train_class, y_temp_class, y_train_reg, y_temp_reg = train_test_split(
X, y_classification, y_regression, test_size=0.3, random_state=42
)
X_test, X_holdout, y_test_class, y_holdout_class, y_test_reg, y_holdout_reg = train_test_split(
X_temp, y_temp_class, y_temp_reg, test_size=0.5, random_state=42
)
# Scale the features
scaler = StandardScaler()
X_train_scaled = scaler.fit_transform(X_train)
X_test_scaled = scaler.transform(X_test)
X_holdout_scaled = scaler.transform(X_holdout)
# Define function to create model architectures
def create_model(model_type):
input_layer = Input(shape=(X_train_scaled.shape[1],))
shared = Dense(64, activation='relu')(input_layer)
shared = Dropout(0.3)(shared)
if model_type == 'MTAN':
# MTAN model architecture with attention mechanism
attention = Attention()([shared, shared])
shared = Concatenate()([shared, attention])
classification_branch = Dense(16, activation='relu')(shared)
classification_output = Dense(1, activation='sigmoid', name='classification_output')(classification_branch)
regression_branch = Dense(16, activation='relu')(shared)
regression_output = Dense(1, activation='linear', name='regression_output')(regression_branch)
elif model_type == 'Cross-Stitch':
# Cross-Stitch model architecture
cross_stitch_layer = Dense(32, activation='relu')(shared)
classification_branch = Dense(32, activation='relu')(cross_stitch_layer)
classification_output = Dense(1, activation='sigmoid', name='classification_output')(classification_branch)
regression_branch = Dense(32, activation='relu')(cross_stitch_layer)
regression_output = Dense(1, activation='linear', name='regression_output')(regression_branch)
elif model_type == 'MTL-DNN':
# MTL-DNN model architecture with deeper layers
shared = Dense(128, activation='relu')(shared)
classification_branch = Dense(64, activation='relu')(shared)
classification_output = Dense(1, activation='sigmoid', name='classification_output')(classification_branch)
regression_branch = Dense(64, activation='relu')(shared)
regression_output = Dense(1, activation='linear', name='regression_output')(regression_branch)
elif model_type == 'HPS':
# HPS model architecture (hard parameter sharing)
classification_branch = Dense(16, activation='relu')(shared)
classification_output = Dense(1, activation='sigmoid', name='classification_output')(classification_branch)
regression_branch = Dense(16, activation='relu')(shared)
regression_output = Dense(1, activation='linear', name='regression_output')(regression_branch)
model = Model(inputs=input_layer, outputs=[classification_output, regression_output])
model.compile(
optimizer='adam',
loss={'classification_output': 'binary_crossentropy', 'regression_output': 'mse'},
metrics={'classification_output': 'accuracy', 'regression_output': 'mae'}
)
return model
# Define model types
model_types = ['MTAN', 'Cross-Stitch', 'MTL-DNN', 'HPS']
# Perform cross-validation and evaluate models
kf = KFold(n_splits=5, shuffle=True, random_state=42)
results = []
for model_type in model_types:
print(f"\nEvaluating model: {model_type}")
fold_accuracies = []
fold_mses = []
for train_index, val_index in kf.split(X_train_scaled):
X_fold_train, X_fold_val = X_train_scaled[train_index], X_train_scaled[val_index]
y_fold_train_class, y_fold_val_class = y_train_class.iloc[train_index], y_train_class.iloc[val_index]
y_fold_train_reg, y_fold_val_reg = y_train_reg.iloc[train_index], y_train_reg.iloc[val_index]
# Create and train the model
model = create_model(model_type)
model.fit(
X_fold_train,
{'classification_output': y_fold_train_class, 'regression_output': y_fold_train_reg},
validation_data=(X_fold_val, {'classification_output': y_fold_val_class, 'regression_output': y_fold_val_reg}),
epochs=10,
batch_size=32,
verbose=0
)
# Evaluate on validation set
val_preds = model.predict(X_fold_val)
val_class_preds = (val_preds[0] > 0.5).astype(int).flatten()
val_reg_preds = val_preds[1].flatten()
accuracy = accuracy_score(y_fold_val_class, val_class_preds)
mse = mean_squared_error(y_fold_val_reg, val_reg_preds)
fold_accuracies.append(accuracy)
fold_mses.append(mse)
avg_accuracy = np.mean(fold_accuracies)
avg_mse = np.mean(fold_mses)
results.append({'Model': model_type, 'Accuracy': avg_accuracy, 'MSE': avg_mse})
print(f"{model_type} - Cross-Validation Accuracy: {avg_accuracy:.4f}")
print(f"{model_type} - Cross-Validation MSE: {avg_mse:.4f}")
# Evaluate on holdout set
holdout_preds = model.predict(X_holdout_scaled)
holdout_class_preds = (holdout_preds[0] > 0.5).astype(int).flatten()
holdout_reg_preds = holdout_preds[1].flatten()
holdout_accuracy = accuracy_score(y_holdout_class, holdout_class_preds)
holdout_mse = mean_squared_error(y_holdout_reg, holdout_reg_preds)
results[-1]['Holdout_Accuracy'] = holdout_accuracy
results[-1]['Holdout_MSE'] = holdout_mse
print(f"Evaluating model on holdout set: {model_type}")
print(f"{model_type} - Binary Accuracy: {holdout_accuracy:.4f}")
print(f"{model_type} - Features Prediction MSE: {holdout_mse:.4f}")
# Convert results to DataFrame and plot for easy comparison
results_df = pd.DataFrame(results)

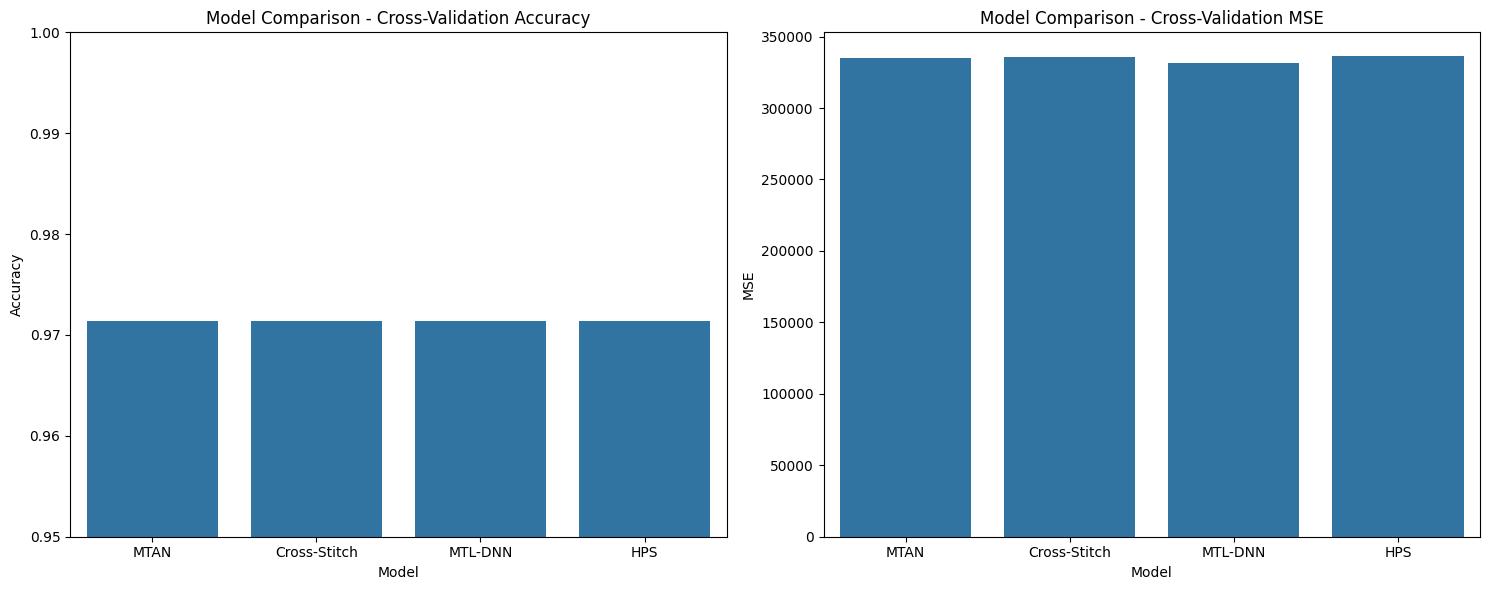

# Plot model comparison
fig, axes = plt.subplots(1, 2, figsize=(15, 6))
sns.barplot(x='Model', y='Accuracy', data=results_df, ax=axes[0])
axes[0].set_title('Model Comparison - Cross-Validation Accuracy')
axes[0].set_ylim(0.95, 1.0)
sns.barplot(x='Model', y='MSE', data=results_df, ax=axes[1])
axes[1].set_title('Model Comparison - Cross-Validation MSE')
plt.tight_layout()
plt.show()

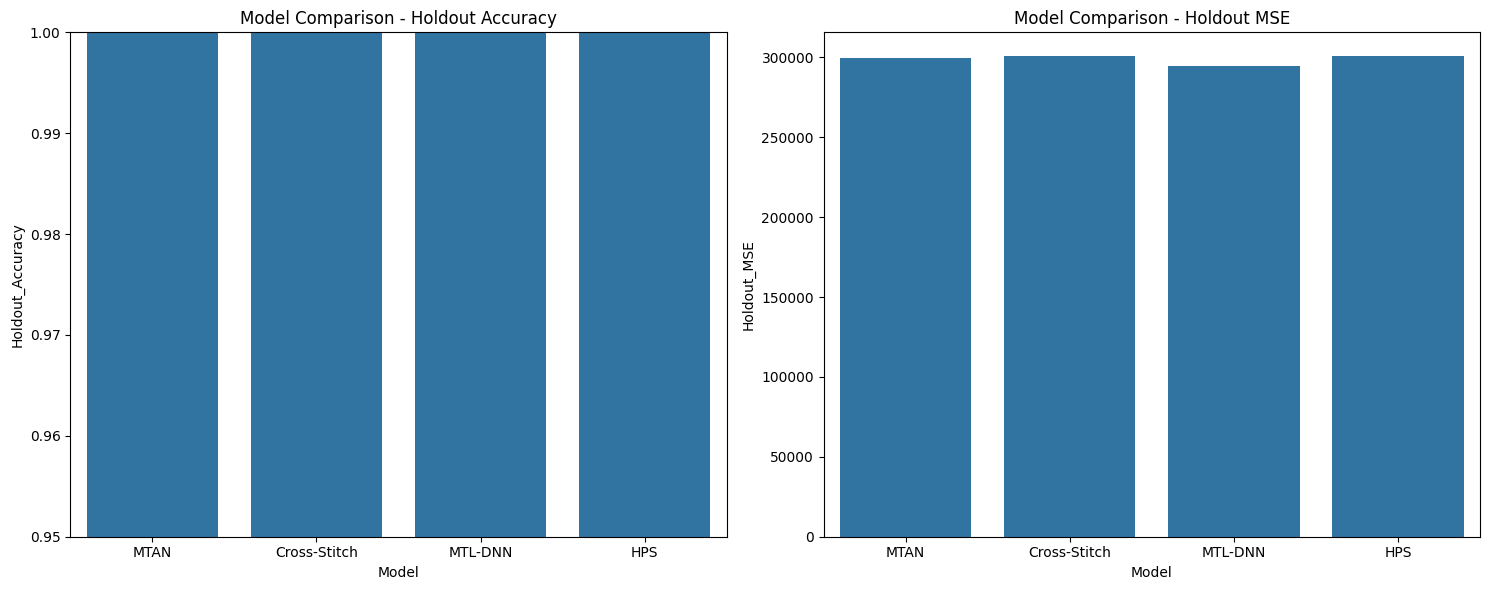

# Holdout set performance
fig, axes = plt.subplots(1, 2, figsize=(15, 6))
sns.barplot(x='Model', y='Holdout_Accuracy', data=results_df, ax=axes[0])
axes[0].set_title('Model Comparison - Holdout Accuracy')
axes[0].set_ylim(0.95, 1.0)
sns.barplot(x='Model', y='Holdout_MSE', data=results_df, ax=axes[1])
axes[1].set_title('Model Comparison - Holdout MSE')
plt.tight_layout()
plt.show()
